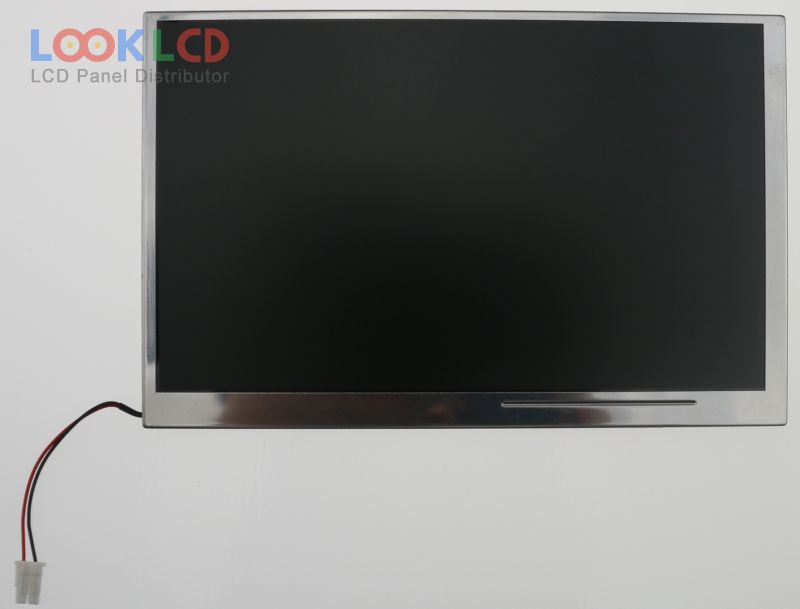

| Número da peça | AM-800480RCTMQW-00H |
| Marca | AMPIRE |
| Tamanho | 7.0 |
| Aplicativo | IA |
| Resolução | 800×480 |
| Composição | LCM |
| Brilho | 1000 |
| CR | 400:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | TTL |
| marca do painel | AMPIRE |
| modelo de painel | AM-800480RCTMQW-00H |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 7.0 inch |
| resolução | 800(RGB)×480 , WVGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 152.4×91.44 mm |
| contorno | 165×106×9.06 mm |
| superfície | |
| brilho | 1000 cd/m² (Typ.) |
| taxa de contraste | 400:1 (Typ.) |
| exibir cores | 262K (6-bit) |
| tempo de resposta | 5/11 (Typ.)(Tr/Td) |
| ângulo de visão | 70/70/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 5S3PWLEDWithout Driver |
| interface de sinal | Parallel RGB (1 ch, 6-bit), 40 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | IA |
