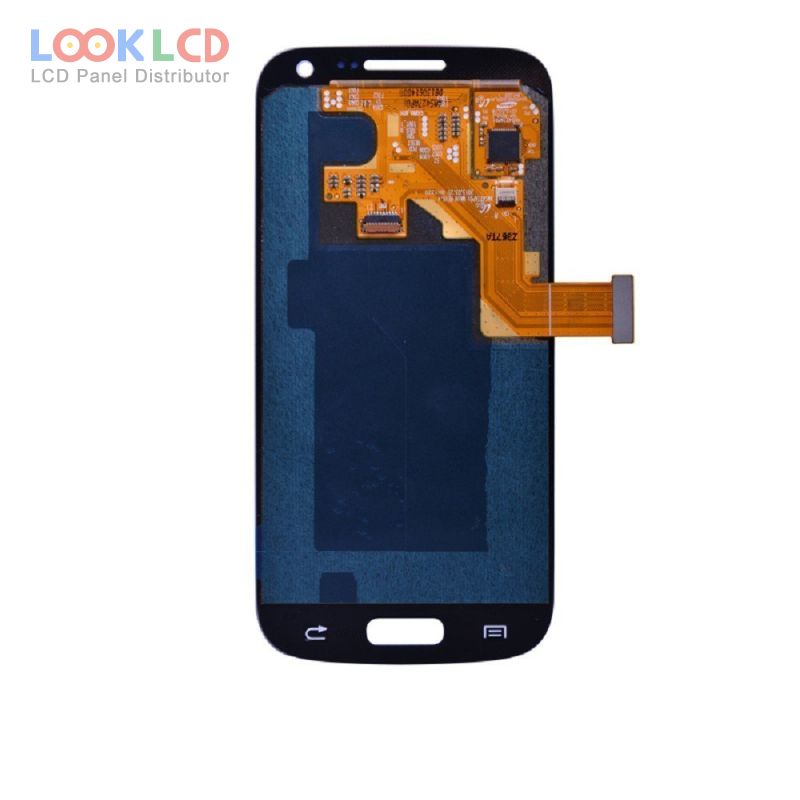

| Número da peça | AMS427GL45-0 |
| Marca | Samsung |
| Tamanho | 4.3 |
| Aplicativo | MPH |
| Resolução | 480×800 |
| Composição | Assembly |
| Brilho | 300 |
| CR | 10000:1 |
| cores | 16.7M |
| luz de fundo | self |
| Interface | TTL |
| marca do painel | SAMSUNG SMD |
| modelo de painel | AMS427GL45-0 |
| tipo de painel | AM-OLED , Assembly |
| tamanho do painel | 4.3 inch |
| resolução | 480(RGB)×800 , WVGA |
| área ativa | 55.8×93 mm |
| contorno | 62.68×121.93 mm |
| superfície | Hard coating |
| brilho | 300 cd/m² (Typ.) |
| taxa de contraste | 10000 : 1 (Min.) |
| exibir cores | 16.7M (8-bit), CIE1931106% |
| ângulo de visão | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| interface de sinal | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins |
| tensão de entrada | 1.8/3.0/3.8V (Typ.)(VDD3/VCI/VBAT) |
| aplicativo | MPH |
