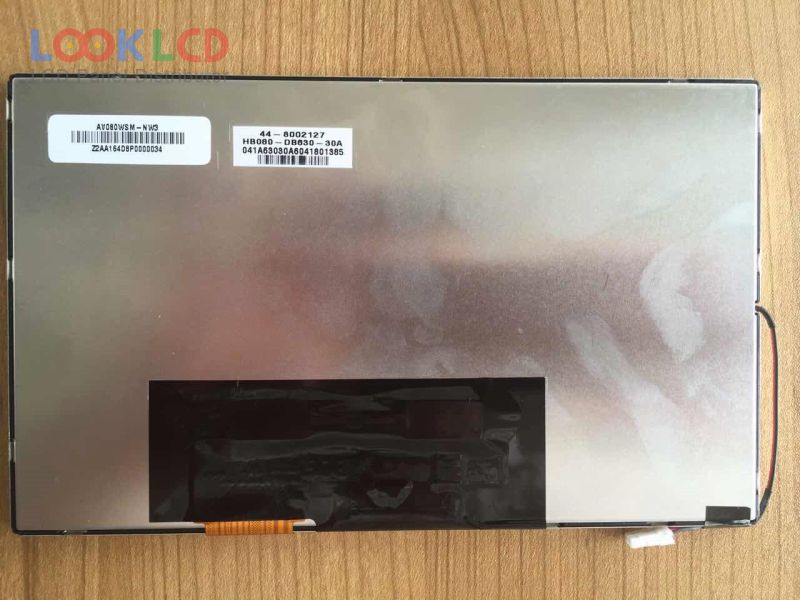

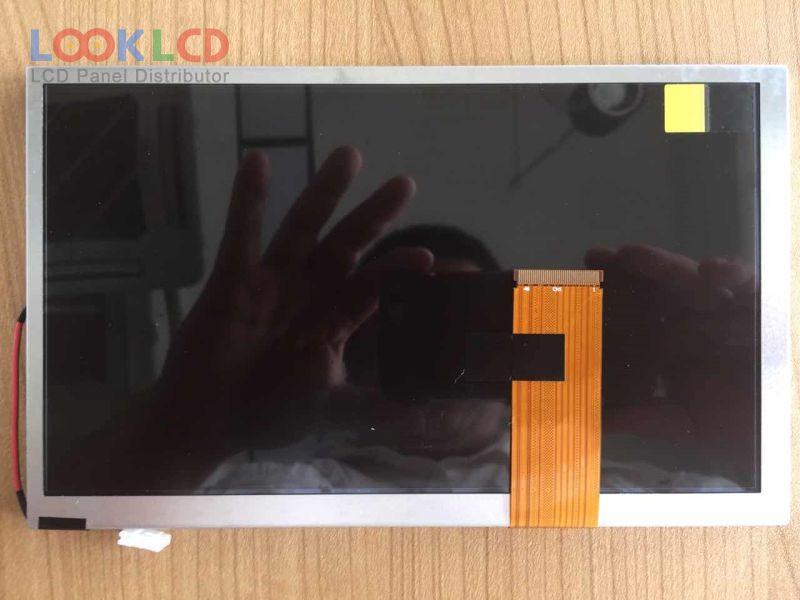

| Número da peça | AV080WSM-NW3 |
| Marca | BOE |
| Tamanho | 8.0 |
| Aplicativo | CNS |
| Resolução | 1024×600 |
| Composição | LCM |
| Brilho | 600 |
| CR | 800:1 |
| cores | 16.7M |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | BOE |
| modelo de painel | AV080WSM-NW3 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 8.0 inch |
| resolução | 1024(RGB)×600 , WSVGA |
| modo de exibição | ADS, Normally Black, Transmissive |
| área ativa | 176.64×99.36 mm |
| contorno | 192.8×116.9×7.1 mm |
| superfície | |
| brilho | 600 cd/m² (Typ.) |
| taxa de contraste | 800:1 (Typ.) |
| exibir cores | 16.7M (6-bit + Hi-FRC), CIE193150% |
| tempo de resposta | 25 (Typ.)(Tr+Td) |
| ângulo de visão | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 3S10PWLEDWithout Driver |
| interface de sinal | LVDS (1 ch, 8-bit), 40 pins |
| tensão de entrada | 3.3/11.5/24/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicativo | CNS |
