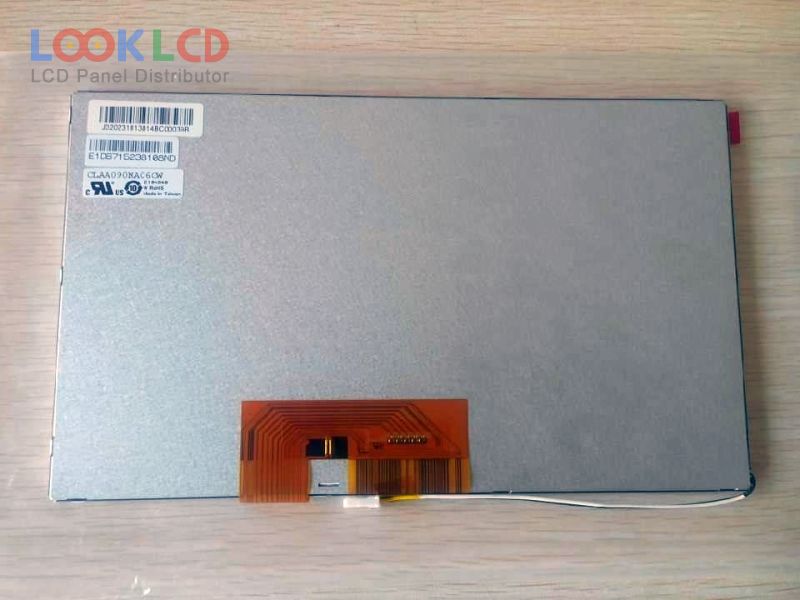

| Número da peça | CLAA090NA06CW |
| Marca | CPT |
| Tamanho | 9.0 |
| Aplicativo | CNS |
| Resolução | 1024×600 |
| Composição | LCM |
| Brilho | 500 |
| CR | 800:1 |
| cores | 262K/16.2M |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | CPT |
| modelo de painel | CLAA090NA06CW |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 9.0 inch |
| resolução | 1024(RGB)×600 , WSVGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 196.608×114.15 mm |
| contorno | 211.1×126.5×6 mm |
| superfície | Antiglare, Hard coating (3H) |
| brilho | 500 cd/m² (Typ.) |
| taxa de contraste | 800:1 (Typ.) |
| exibir cores | 262K/16.2M (6-bit / 6-bit + Dithering), CIE193150% |
| tempo de resposta | 25 (Typ.)(Tr+Td) |
| ângulo de visão | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 3S13PWLEDWithout Driver |
| interface de sinal | LVDS (1 ch, 6/8-bit), 40 pins |
| tensão de entrada | 3.3/9.6/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicativo | CNS |
