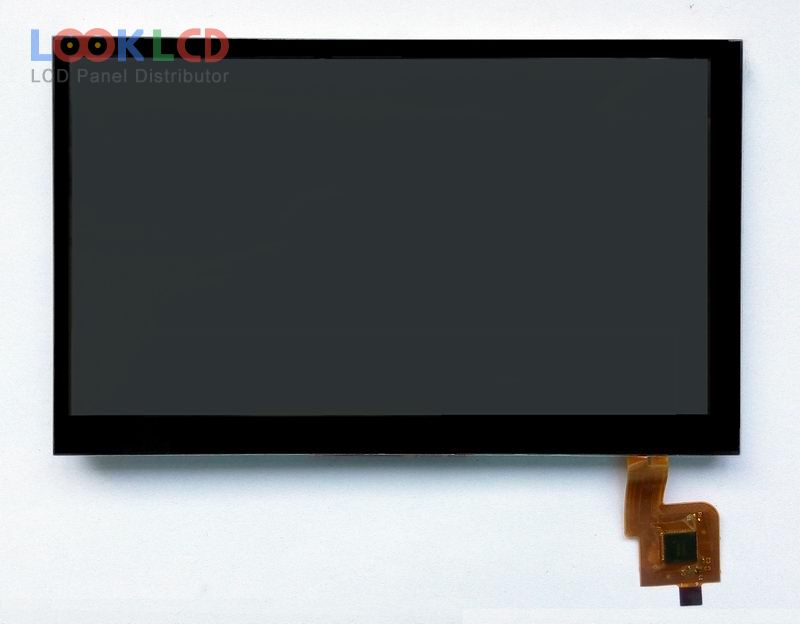

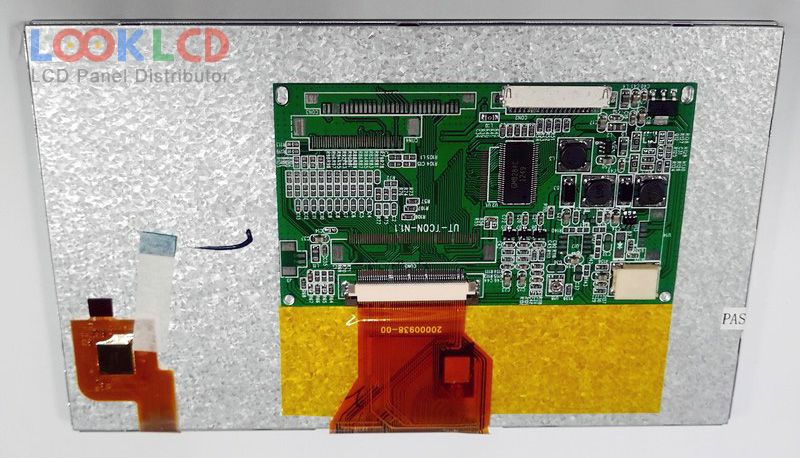

| Número da peça | DLC0700FDG-T-6 |
| Marca | Other |
| Tamanho | 7.0 |
| Aplicativo | PND |
| Resolução | 800×480 |
| Composição | LCM |
| Brilho | 250 |
| CR | 500:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | DLC |
| modelo de painel | DLC0700FDG-T-6 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 7.0 inch |
| resolução | 800(RGB)×480 , WVGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 154.08×85.92 mm |
| contorno | 164.9×100×11.5 mm |
| superfície | |
| brilho | 250 cd/m² (Typ.) |
| taxa de contraste | 500:1 (Typ.) |
| exibir cores | 262K (6-bit) |
| tempo de resposta | 10/15 (Typ.)(Tr/Td) |
| ângulo de visão | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 3S6PWLEDEmbedded (LED Driver) |
| interface de sinal | LVDS (1 ch, 6-bit), 20 pins |
| tensão de entrada | 5.0V (Typ.) |
| aplicativo | PND |
| DLC0700BZG-7 | Other | 7.0 | 800×480 |
| DLC0700CZG-6 | Other | 7.0 | 800×480 |
| DLC0700DDG-4 | Other | 7.0 | 800×480 |
| DLC0700EZG-2 | Other | 7.0 | 800×480 |
| DLC0700EZG-T-2 | Other | 7.0 | 800×480 |
| DLC0700FDG-T-6 | Other | 7.0 | 800×480 |
| DLC0700JBG-T-6 | Other | 7.0 | 1024×600 |
| DLC0700MIG | Other | 7.0 | 800×480 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| DLC0700WZG | Other | 7.0 | 1200×1920 |
| 37WVF0H | SII | 3.7 | 480×800 |
| AT050TN33 V.1 | Innolux | 5.0 | 480×272 |
| HSD043I9W1-B00 | HannStar | 4.3 | 480×272 |
| LB050WQ2-TD03 | LG Display | 5.0 | 480×272 |
| LMS430HF20 | Samsung | 4.3 | 480×272 |
| LMS500HF05 | Samsung | 5.0 | 480×272 |
| LQ043T1DH04 | SHARP | 4.3 | 480×272 |
| NL4827HC19-01B | NLT | 4.3 | 480×272 |
| PA040XS1 | E Ink | 4.0 | 320×234 |
| TMT035DNAFWU19 | Tianma | 3.5 | 320×240 |
