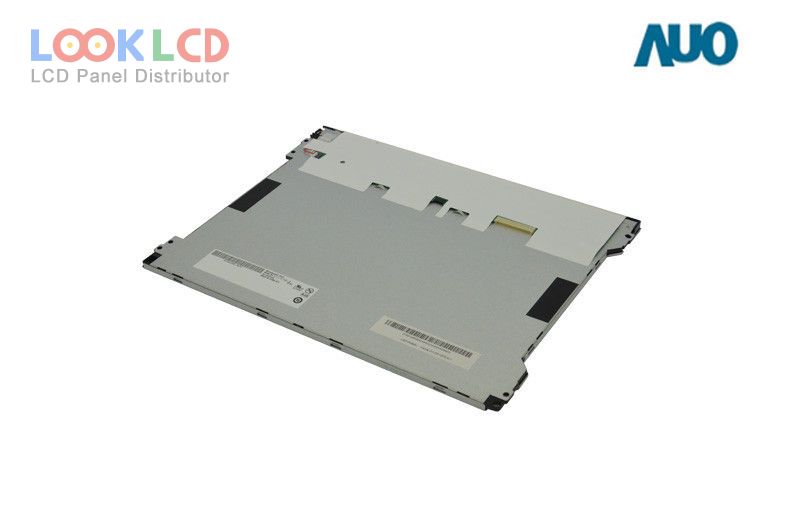

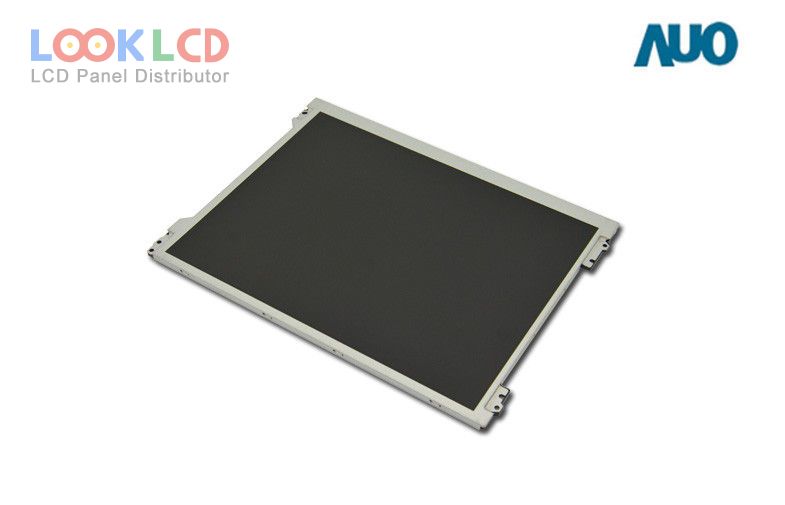

| Número da peça | G121XTN01.0 |
| Marca | AUO |
| Tamanho | 12.1 |
| Aplicativo | IA |
| Resolução | 1024×768 |
| Composição | LCM |
| Brilho | 500 |
| CR | 700:1 |
| cores | 262K/16.2M |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | AUO |
| modelo de painel | G121XTN01.0 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 12.1 inch |
| resolução | 1024(2)×768(2) , XGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 245.76×184.32 mm |
| contorno | 279×209×9 mm |
| superfície | Antiglare, Hard coating (3H) |
| brilho | 500 cd/m² (Typ.) |
| taxa de contraste | 700:1 (Typ.) |
| exibir cores | 262K/16.2M (6-bit / 6-bit + FRC), CIE193172% |
| tempo de resposta | 25/10 (Typ.)(Tr/Td) |
| ângulo de visão | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 6S3PWLEDEmbedded (LED Driver) |
| interface de sinal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | IA |
