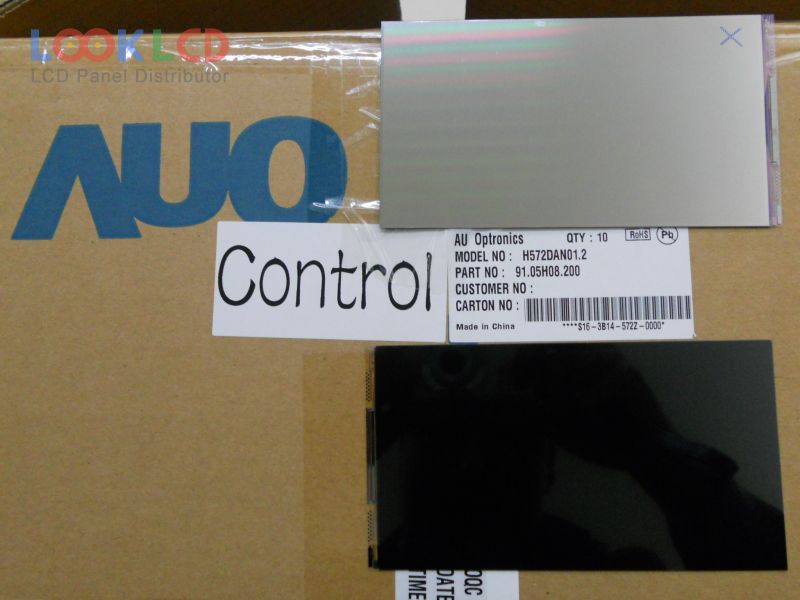

| Número da peça | H572DAN01.2 |
| Marca | AUO |
| Tamanho | 5.7 |
| Aplicativo | MPH |
| Resolução | 1080×1920 |
| Composição | CELL |
| Brilho | 0 |
| CR | 1000:1 |
| cores | 16.7M |
| luz de fundo | No B/L |
| Interface | MIPI |
| marca do painel | AUO |
| modelo de painel | H572DAN01.2 |
| tipo de painel | LTPS TFT-LCD , CELL |
| tamanho do painel | 5.7 inch |
| resolução | 1080(RGB)×1920 , FHD |
| modo de exibição | AHVA, Normally Black, Transmissive |
| área ativa | 71.28×126.72 mm |
| contorno | 73.68×133.27 mm |
| superfície | Hard coating |
| profundidade de vidro | 0.15+0.15 mm |
| transmissividade | 4.8% (Typ.)(with Polarizer) |
| taxa de contraste | 1000:1 (Typ.) |
| exibir cores | 16.7M (8-bit), CIE193172% |
| tempo de resposta | 20/15 (Typ.)(Tr/Td) |
| ângulo de visão | 80/80/80/80 (Typ.)(CR≥100)(L/R/U/D) |
| motorista ic | COG Built-in R63311 |
| aplicativo | MPH |
