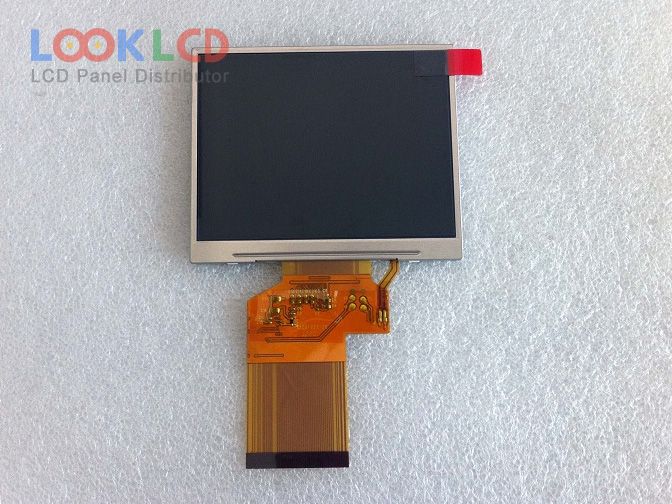

| Número da peça | LQ035NC111 |
| Marca | Innolux |
| Tamanho | 3.5 |
| Aplicativo | DSC |
| Resolução | 320×240 |
| Composição | LCM |
| Brilho | 300 |
| CR | 400:1 |
| cores | 16.7M |
| luz de fundo | WLED |
| Interface | Parallel/Serial |
| marca do painel | ChiHsin |
| modelo de painel | LQ035NC111 1 Compatible model |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 3.5 inch |
| resolução | 320(RGB)×240 , QVGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 70.08×52.56 mm |
| contorno | 76.9×63.9×3.46 mm |
| superfície | |
| brilho | 300 cd/m² (Typ.) |
| taxa de contraste | 400:1 (Typ.) |
| exibir cores | 16.7M (8-bit), CIE193160% |
| tempo de resposta | 10/15 (Typ.)(Tr/Td) |
| ângulo de visão | 60/60/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| tipo de lâmpada | 6S1PWLEDWithout Driver |
| interface de sinal | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | DSC |
| LQ035LC111 | Innolux | 3.5 | 320×240 |
| LQ035NC111 | Innolux | 3.5 | 320×240 |
| LQ035Q1DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q1DH01 | SHARP | 3.5 | 320×240 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q5DG11 | SHARP | 3.5 | 320×240 |
| LQ035Q7DB03F | SHARP | 3.5 | 240×320 |
| LQ035Q7DB04 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| 990000738 | TPO | 3.5 | 320×240 |
| A027DN01 VR | AUO | 2.7 | 320×240 |
| A027DN04 V3 | AUO | 2.7 | 320×240 |
| A030DN04 V0 | AUO | 3.0 | 320×240 |
| DLC0350CZG-T-2 | Other | 3.5 | 320×240 |
| LQ035NC211 | Innolux | 3.5 | 320×240 |
| LQ035Q1DH01 | SHARP | 3.5 | 320×240 |
| LS020A8DX02 | SHARP | 2.0 | 320×240 |
| PD035OX1 | E Ink | 3.5 | 320×234 |
| TM035KDH05 | Tianma | 3.5 | 320×240 |
