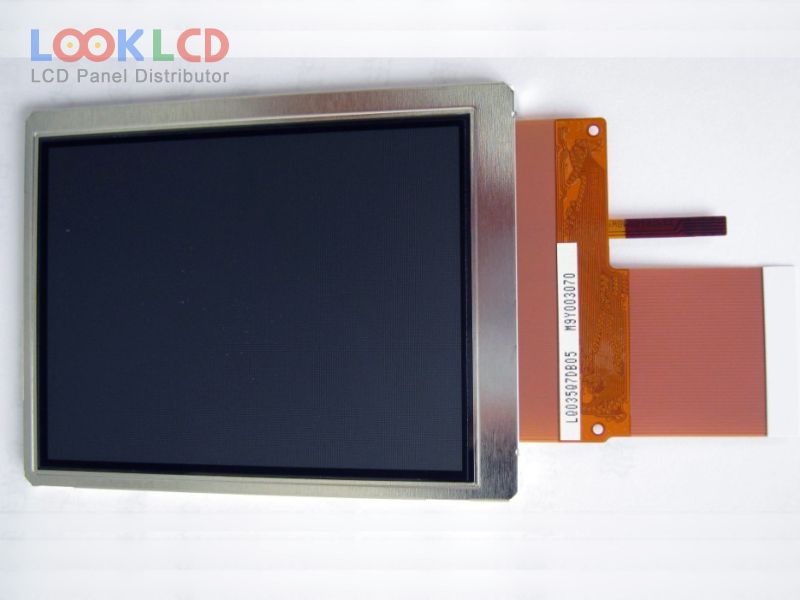

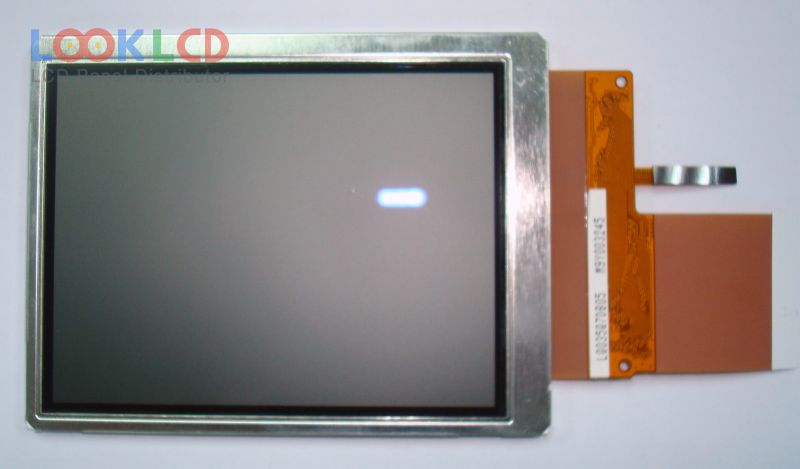

| Número da peça | LQ035Q7DB05 |
| Marca | SHARP |
| Tamanho | 3.5 |
| Aplicativo | HHP |
| Resolução | 240×320 |
| Composição | LCM |
| Brilho | 160 |
| CR | 85:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | TTL |
| marca do painel | SHARP |
| modelo de painel | LQ035Q7DB05 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 3.5 inch |
| resolução | 240(RGB)×320 , QVGA |
| modo de exibição | TN, Normally White, Transflective |
| área ativa | 53.64×71.52 mm |
| contorno | 65×85×3.7 mm |
| superfície | Hard coating (3H) |
| brilho | 160 cd/m² (Typ.) |
| taxa de contraste | 85:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| exibir cores | 262K (6-bit) |
| tempo de resposta | 30/50 (Typ.)(Tr/Td) |
| ângulo de visão | 40/40/40/50 (Typ.)(CR≥2)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 6S1PWLEDWithout Driver |
| interface de sinal | Parallel RGB (1 ch, 6-bit), 50 pins |
| tensão de entrada | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
| aplicativo | HHP |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LQ035NC211 | Innolux | 3.5 | 320×240 |
| LQ035Q1DH02 | SHARP | 3.5 | 320×240 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q3DG02A | SHARP | 3.5 | 320×240 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q5DG11 | SHARP | 3.5 | 320×240 |
| LQ035Q7DB04 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH05 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| 32WVF0H | SII | 3.2 | 480×800 |
| CMD500TT10-C1 | ORTUSTECH | 3.2 | 320×240 |
| G050VVN01.0 | AUO | 5.0 | 480×800 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| LQ043T1DG03 | SHARP | 4.3 | 480×272 |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LS037V7DW01 | SHARP | 3.7 | 480×640 |
| LS037V7DW03B | SHARP | 3.7 | 480×640 |
| LTM035A776C | TOSHIBA | 3.5 | 240×320 |
| T-55343GD035JU-LW-AFN | Kyocera | 3.5 | 320×240 |
