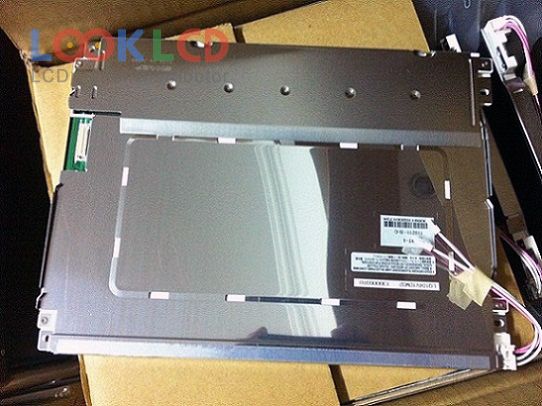

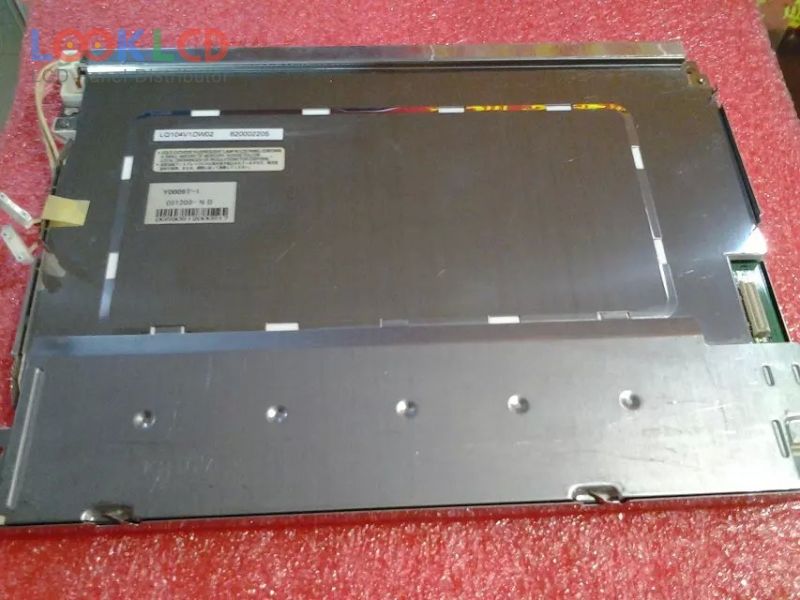

| Número da peça | LQ104V1DW02 |
| Marca | SHARP |
| Tamanho | 10.4 |
| Aplicativo | IA |
| Resolução | 640×480 |
| Composição | LCM |
| Brilho | 380 |
| CR | 450:1 |
| cores | 262K |
| luz de fundo | CCFL |
| Interface | TTL |
| marca do painel | SHARP |
| modelo de painel | LQ104V1DW02 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 10.4 inch |
| resolução | 640(RGB)×480 , VGA |
| modo de exibição | ASV, Normally Black, Transmissive |
| área ativa | 211.2×158.4 mm |
| contorno | 246.5×179.4×15.5 mm |
| superfície | Antiglare, Hard coating (3H), Antireflection |
| brilho | 380 cd/m² (Typ.) |
| taxa de contraste | 450:1 (Typ.) |
| exibir cores | 262K (6-bit) |
| tempo de resposta | 12/13 (Typ.)(Tr/Td) |
| ângulo de visão | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| tipo de lâmpada | 2 pcsCCFLWithout Driver |
| interface de sinal | Parallel RGB (1 ch, 6-bit), 31 pins |
| tensão de entrada | 3.3/5.0V (Typ.)(VCC) |
| aplicativo | IA |
