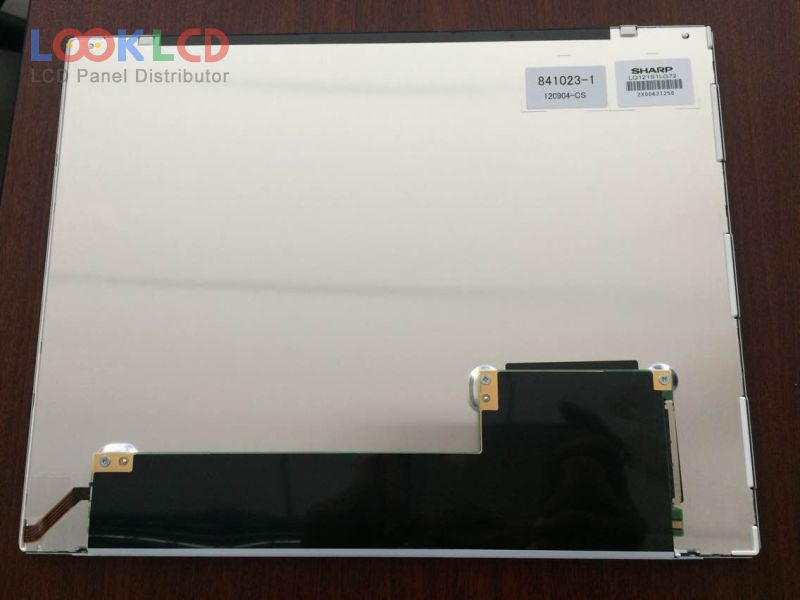

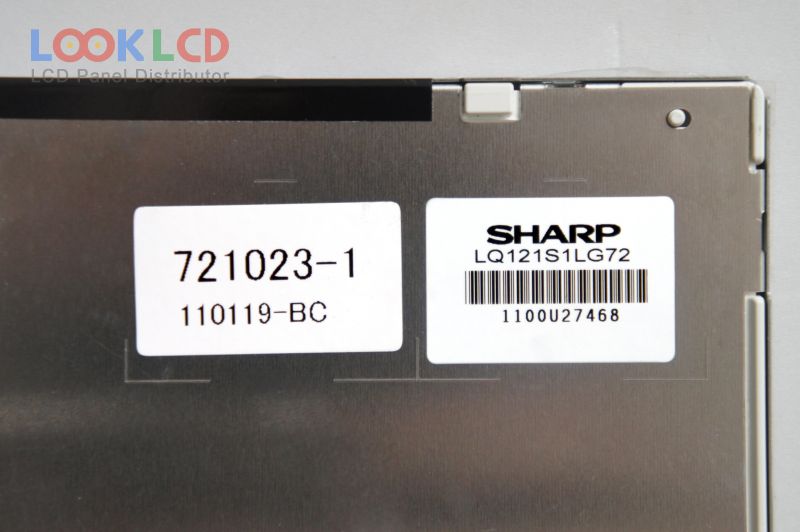

| Número da peça | LQ121S1LG72 |
| Marca | SHARP |
| Tamanho | 12.1 |
| Aplicativo | GM |
| Resolução | 800×600 |
| Composição | LCM |
| Brilho | 300 |
| CR | 900:1 |
| cores | 16.2M |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | SHARP |
| modelo de painel | LQ121S1LG72 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 12.1 inch |
| resolução | 800(RGB)×600 , SVGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 246×184.5 mm |
| contorno | 265×205×10 mm |
| superfície | Antiglare, Hard coating (3H) |
| brilho | 300 cd/m² (Typ.) |
| taxa de contraste | 900:1 (Typ.) |
| exibir cores | 16.2M (6-bit + FRC), CIE193176% |
| tempo de resposta | 30 (Typ.)(Tr+Td); 10 (Typ.)(G to G) |
| ângulo de visão | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | WLEDEmbedded (LED Driver) |
| interface de sinal | LVDS (1 ch, 8-bit), 30 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | GM |
