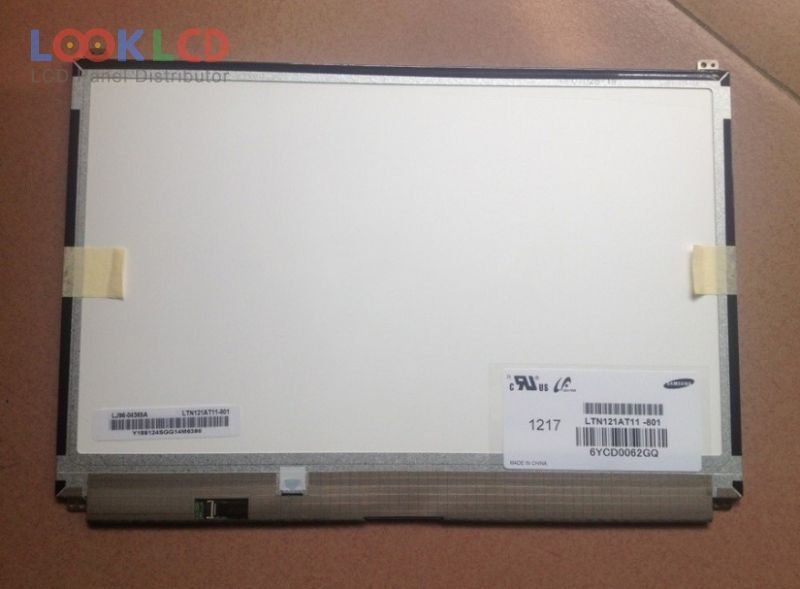

| Número da peça | LTN121AT11-801 |
| Marca | Samsung |
| Tamanho | 12.1 |
| Aplicativo | NBPC |
| Resolução | 1280×800 |
| Composição | LCM |
| Brilho | 300 |
| CR | 300:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | SAMSUNG |
| modelo de painel | LTN121AT11-801 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 12.1 inch |
| resolução | 1280(RGB)×800 , WXGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 261.12×163.2 mm |
| contorno | 274.5×177.5×3.6 mm |
| superfície | Antiglare (Haze 25%), Hard coating (3H) |
| brilho | 300 cd/m² (Typ.) |
| taxa de contraste | 300:1 (Min.) |
| exibir cores | 262K (6-bit), CIE193145% |
| tempo de resposta | 16 (Typ.)(Tr+Td) |
| ângulo de visão | 45/45/20/30 (Min.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 6S4PWLEDEmbedded (LED Driver) |
| interface de sinal | LVDS (1 ch, 6-bit), 40 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | NBPC |
