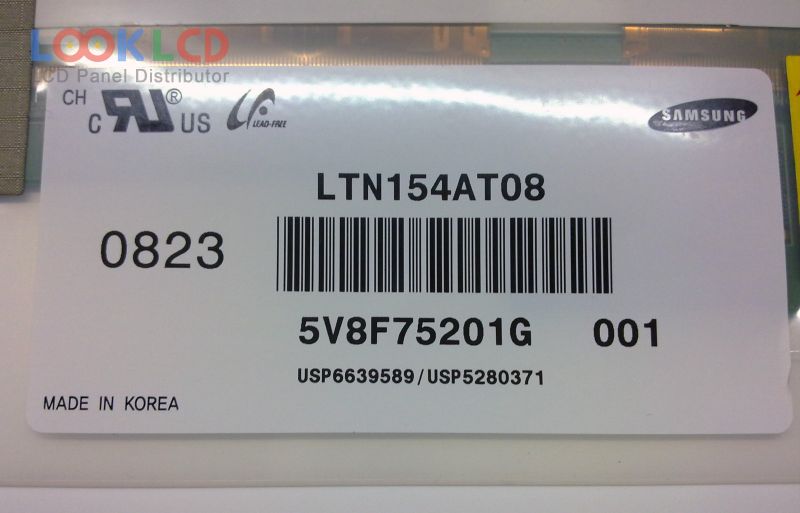

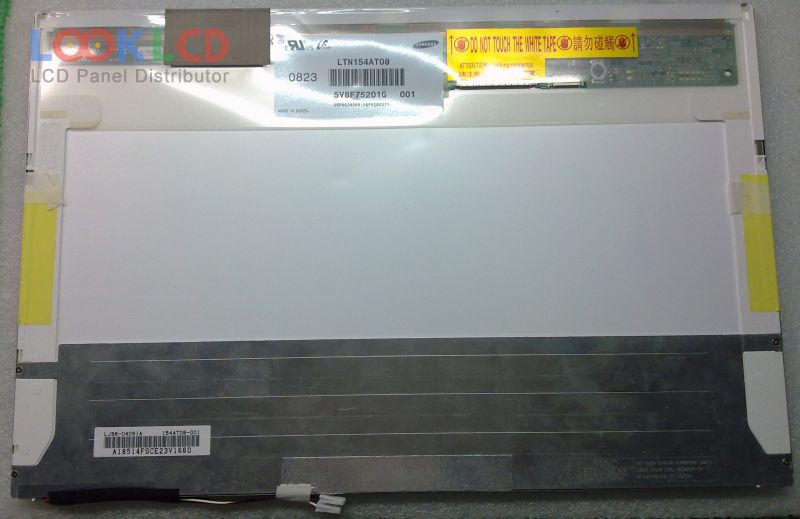

| Número da peça | LTN154AT08-001 |
| Marca | Samsung |
| Tamanho | 15.4 |
| Aplicativo | NBPC |
| Resolução | 1280×800 |
| Composição | LCM |
| Brilho | 300 |
| CR | 600:1 |
| cores | 262K |
| luz de fundo | CCFL |
| Interface | LVDS |
| marca do painel | SAMSUNG |
| modelo de painel | LTN154AT08-001 3 Compatible model |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 15.4 inch |
| resolução | 1280(RGB)×800 , WXGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 331.2×207 mm |
| contorno | 344×225×7 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |
| superfície | Glare (Haze 0%), Hard coating (3H), Reflection 2.0% (Max.) |
| brilho | 300 cd/m² (Typ.) |
| taxa de contraste | 600:1 (Typ.) |
| exibir cores | 262K (6-bit), CIE193172% |
| tempo de resposta | 16 (Typ.)(Tr+Td) |
| ângulo de visão | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 2 pcsCCFLWithout Driver |
| interface de sinal | LVDS (1 ch, 6-bit), 30 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | NBPC |
