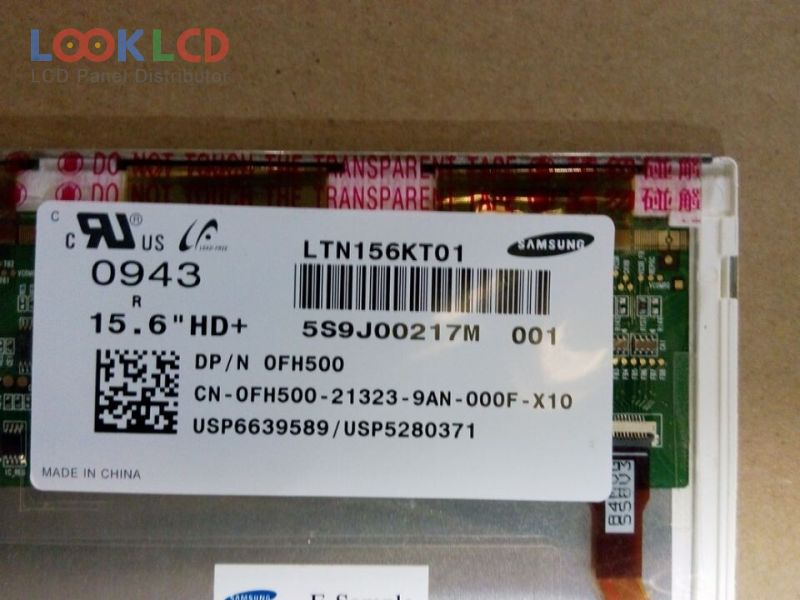

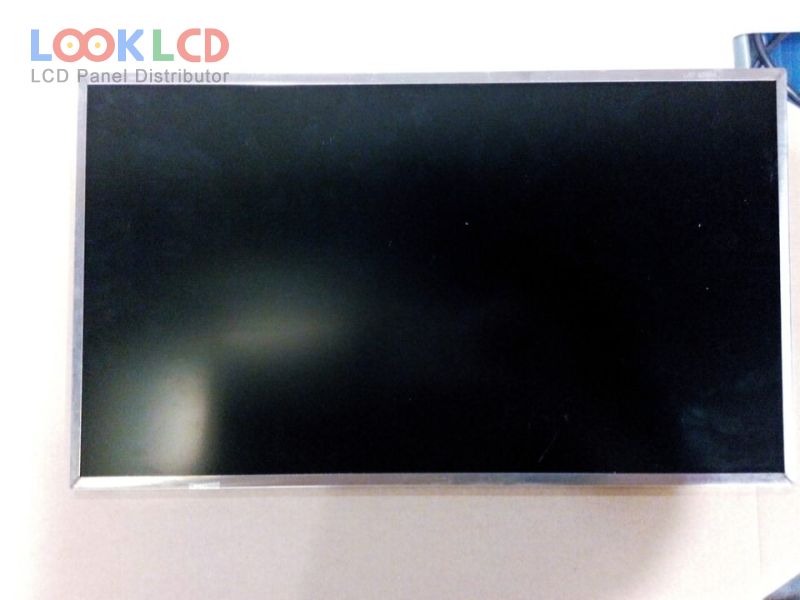

| Número da peça | LTN156KT01-001 |
| Marca | Samsung |
| Tamanho | 15.6 |
| Aplicativo | NBPC |
| Resolução | 1600×900 |
| Composição | LCM |
| Brilho | 250 |
| CR | 400:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | eDP |
| marca do painel | SAMSUNG |
| modelo de painel | LTN156KT01-001 2 Compatible model |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 15.6 inch |
| resolução | 1600(RGB)×900 , HD+ |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 344.232×193.536 mm |
| contorno | 359.3×209.5×5.8 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |
| superfície | Antiglare (Haze 25%), Hard coating (3H) |
| brilho | 250 cd/m² (Typ.) |
| taxa de contraste | 400:1 (Min.) |
| exibir cores | 262K (6-bit), CIE193160% |
| tempo de resposta | 16 (Typ.)(Tr+Td) |
| ângulo de visão | 55/55/45/45 (Min.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 8S8PWLEDEmbedded (LED Driver) |
| interface de sinal | eDP (1 Lane), 30 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | NBPC |
| LP156UD1-SPA2 | LG Display | 15.6 | 3840×2160 |
| LP156WF6-SPH3 | LG Display | 15.6 | 1920×1080 |
| LTN156AT05-B01 | Samsung | 15.6 | 1366×768 |
| LTN156KT01-001 | Samsung | 15.6 | 1600×900 |
| LTN156KT01-003 | Samsung | 15.6 | 1600×900 |
| LTN156KT01-W01 | Samsung | 15.6 | 1600×900 |
| LTN156KT02-301 | Samsung | 15.6 | 1600×900 |
| LTN156KT06-801 | Samsung | 15.6 | 1600×900 |
| N156BGE-L21 | Innolux | 15.6 | 1366×768 |
| N156BGE-LB1 | Innolux | 15.6 | 1366×768 |
| LP101WH1-TLA3 | LG Display | 10.1 | 1366×768 |
| LP154WX2-TL01 | LG Display | 15.4 | 1280×800 |
| LP154WX5-TLA1 | LG Display | 15.4 | 1280×800 |
| LTD121EA3P | TOSHIBA | 12.1 | 1024×768 |
| LTN106W2-L01 | Samsung | 10.6 | 1280×768 |
| LTN140AT08-S03 | Samsung | 14.0 | 1366×768 |
| LTN150PF-L04 | Samsung | 15.0 | 1400×1050 |
| LTN152W5-L03-0 | Samsung | 15.2 | 1280×854 |
| LTN160AT01-W01 | Samsung | 16.0 | 1366×768 |
| LTN160AT02-002 | Samsung | 16.0 | 1366×768 |
