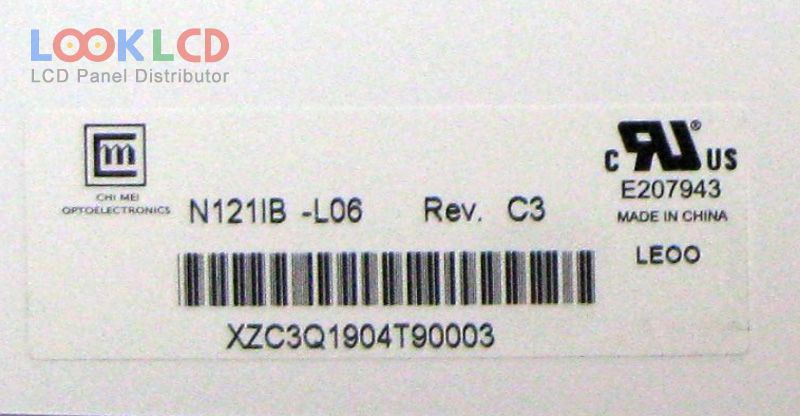

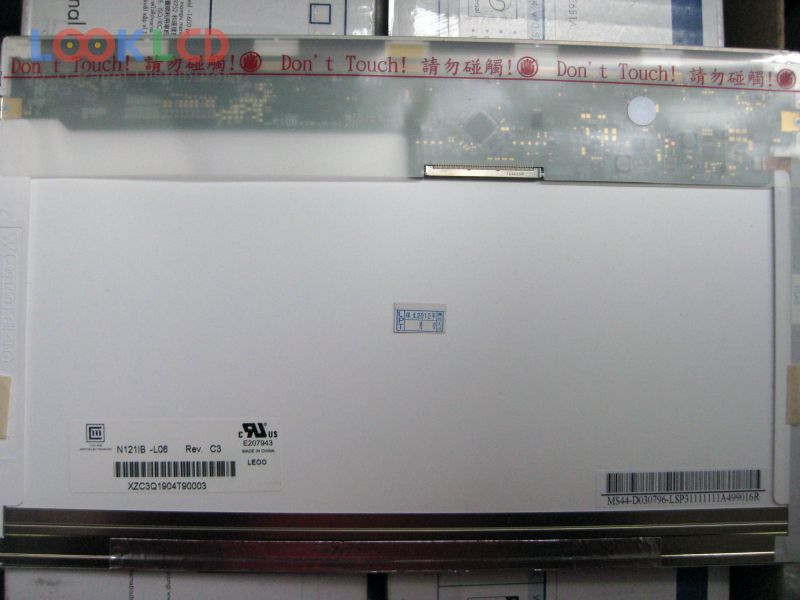

| Número da peça | N121IB-L06 |
| Marca | Innolux |
| Tamanho | 12.1 |
| Aplicativo | NBPC |
| Resolução | 1280×800 |
| Composição | LCM |
| Brilho | 220 |
| CR | 600:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | CMO |
| modelo de painel | N121IB-L06 5 Compatible model |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 12.1 inch |
| resolução | 1280(RGB)×800 , WXGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 261.12×163.2 mm |
| contorno | 275.8×178×5.3 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |
| superfície | Glare (Haze 0%), Hard coating (3H) |
| brilho | 220 cd/m² (Typ.) |
| taxa de contraste | 600:1 (Typ.) |
| exibir cores | 262K (6-bit), CIE193140% |
| tempo de resposta | 3/7 (Typ.)(Tr/Td) |
| ângulo de visão | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 7S6PWLEDEmbedded (LED Driver) |
| interface de sinal | LVDS (1 ch, 6-bit), 40 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | NBPC |
| N121I2-L01 | Innolux | 12.1 | 1280×800 |
| N121I3-L01 | Innolux | 12.1 | 1280×800 |
| N121I3-L03 | Innolux | 12.1 | 1280×800 |
| N121I6-L01 | Innolux | 12.1 | 1280×800 |
| N121I7-L01 | Innolux | 12.1 | 1280×800 |
| N121IA-L02 | Innolux | 12.1 | 1280×800 |
| N121IB-L04 | Innolux | 12.1 | 1280×800 |
| N121IB-L05 Rev.C1 | Innolux | 12.1 | 1280×800 |
| N121IB-L06 | Innolux | 12.1 | 1280×800 |
| NL8060BC31-02 | NLT | 12.1 | 800×600 |
| B156XW02 V2 HW4A | AUO | 15.6 | 1366×768 |
| B170PW03 V0 | AUO | 17.0 | 1440×900 |
| LP133WH2-TLL3 | LG Display | 13.3 | 1366×768 |
| LP156WF4-SPH3 | LG Display | 15.6 | 1920×1080 |
| LP156WH3-TLE1 | LG Display | 15.6 | 1366×768 |
| LTD121KX5V | TOSHIBA | 12.1 | 1280×800 |
| LTN141XB-L04 | Samsung | 14.1 | 1024×768 |
| LTN173KT03-B01 | Samsung | 17.3 | 1600×900 |
| N121IA-L02 | Innolux | 12.1 | 1280×800 |
| N140BGE-EA3 | Innolux | 14.0 | 1366×768 |
