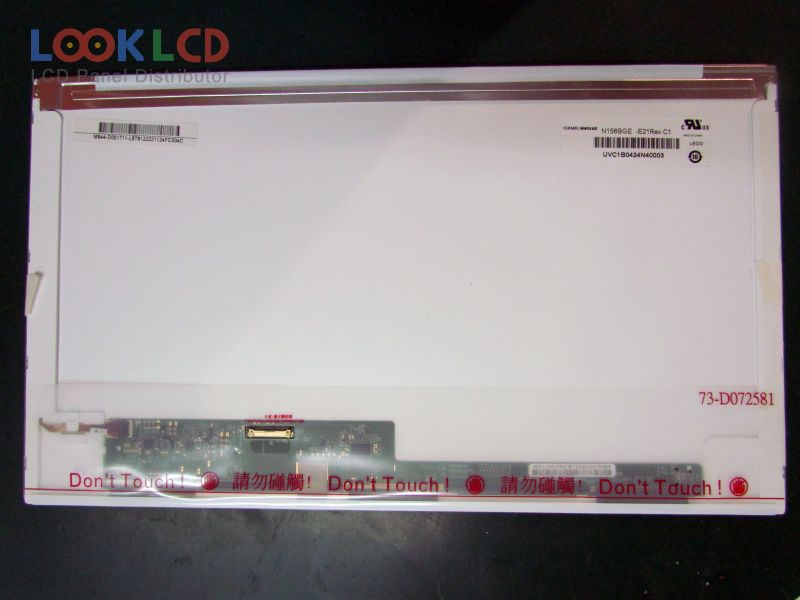

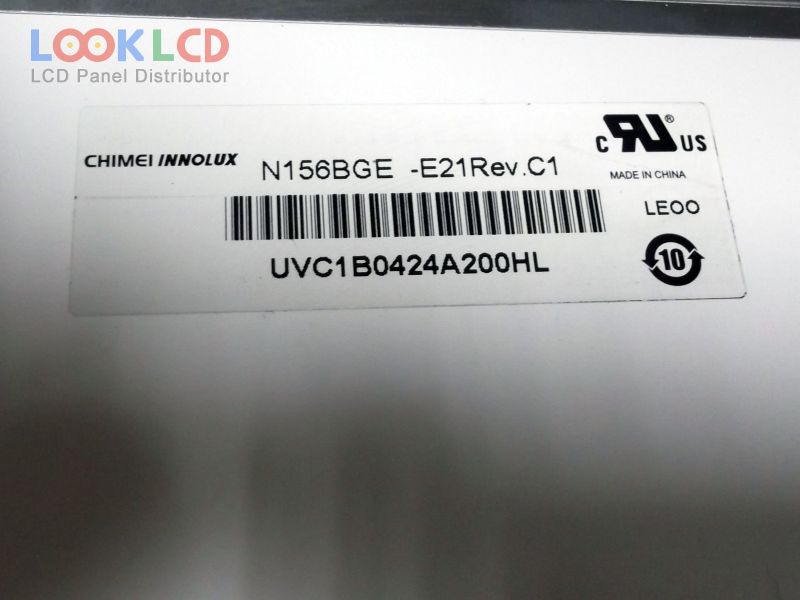

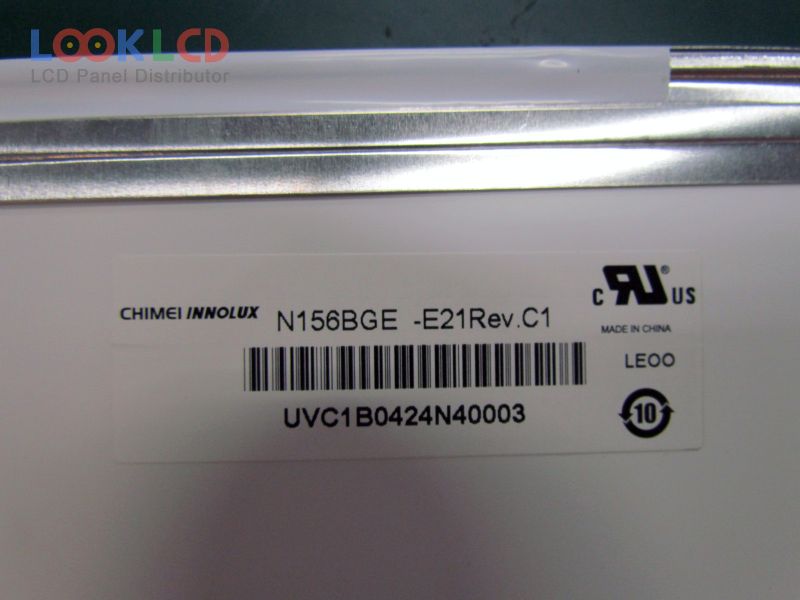

| Número da peça | N156BGE-E21 |
| Marca | Innolux |
| Tamanho | 15.6 |
| Aplicativo | NBPC |
| Resolução | 1366×768 |
| Composição | LCM |
| Brilho | 200 |
| CR | 650:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | eDP |
| marca do painel | CHIMEI INNOLUX |
| modelo de painel | N156BGE-E21 4 Compatible model |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 15.6 inch |
| resolução | 1366(RGB)×768 , WXGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 344.232×193.536 mm |
| contorno | 359.3×209.5×5.5 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |
| superfície | Glare (Haze 0%), Hard coating (3H) |
| brilho | 200 cd/m² (Typ.) |
| taxa de contraste | 650:1 (Typ.) |
| exibir cores | 262K (6-bit), CIE193160% |
| tempo de resposta | 3/8 (Typ.)(Tr/Td) |
| ângulo de visão | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | WLEDEmbedded (LED Driver) |
| interface de sinal | eDP (1 Lane), 30 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | NBPC |
