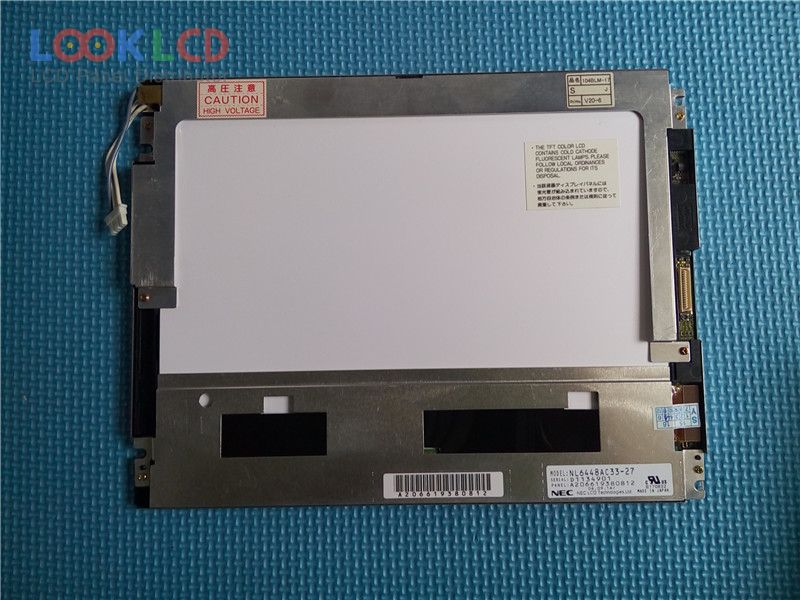

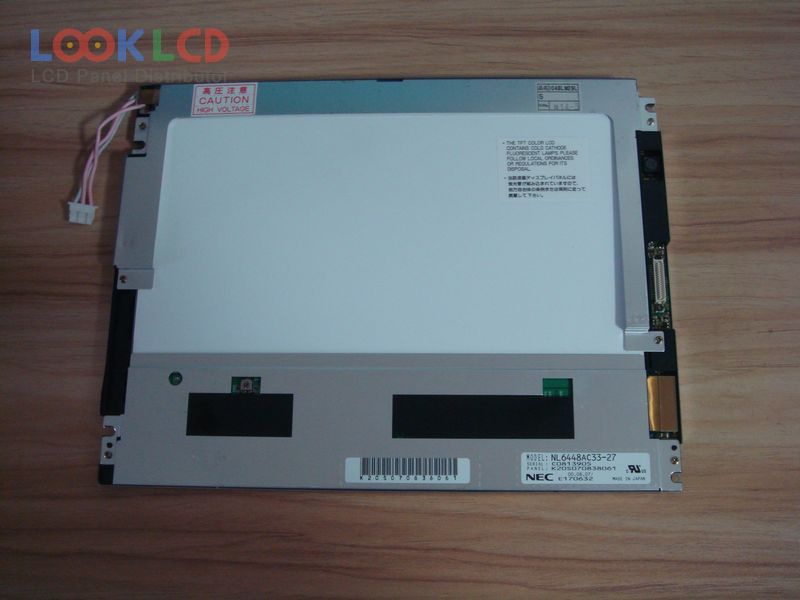

| Número da peça | NL6448AC33-27 |
| Marca | NLT |
| Tamanho | 10.4 |
| Aplicativo | IA |
| Resolução | 640×480 |
| Composição | LCM |
| Brilho | 250 |
| CR | 300:1 |
| cores | 262K |
| luz de fundo | CCFL |
| Interface | TTL |
| marca do painel | NEC |
| modelo de painel | NL6448AC33-27 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 10.4 inch |
| resolução | 640(RGB)×480 , VGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 211.2×158.4 mm |
| contorno | 243×185.1×11.5 mm |
| superfície | |
| brilho | 250 cd/m² (Typ.) |
| taxa de contraste | 300:1 (Typ.) |
| exibir cores | 262K (6-bit), CIE193143% |
| tempo de resposta | 15/60 (Typ.)(Tr/Td) |
| ângulo de visão | 50/50/50/35 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 2 pcsCCFLEmbedded (Inverter) |
| interface de sinal | CMOS (1 ch, 6-bit), 31 pins |
| tensão de entrada | 3.3/5.0V (Typ.) |
| aplicativo | IA |
