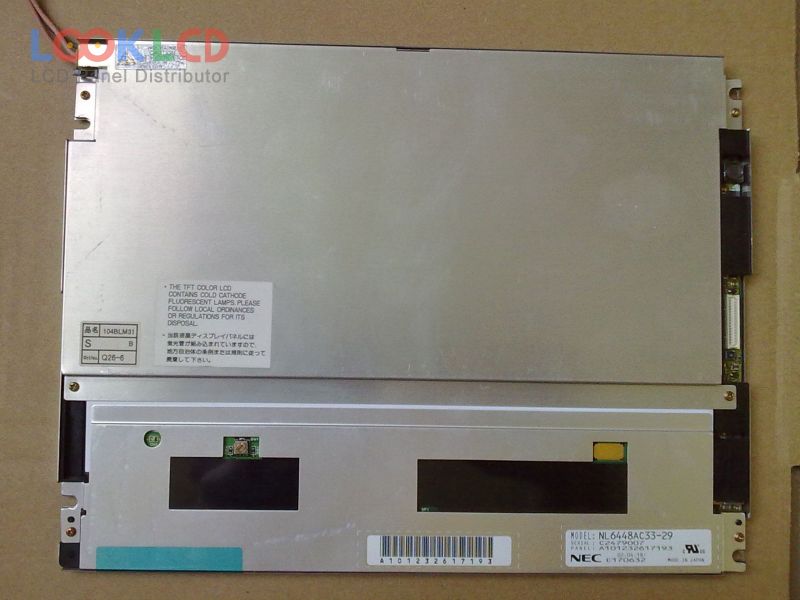

| Número da peça | NL6448AC33-29 |
| Marca | NLT |
| Tamanho | 10.4 |
| Aplicativo | IA |
| Resolução | 640×480 |
| Composição | LCM |
| Brilho | 250 |
| CR | 150:1 |
| cores | 262K |
| luz de fundo | CCFL |
| Interface | TTL |
| marca do painel | NEC |
| modelo de painel | NL6448AC33-29 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 10.4 inch |
| resolução | 640(RGB)×480 , VGA |
| modo de exibição | SFT, Normally Black, Transmissive |
| área ativa | 211.2×158.4 mm |
| contorno | 243×185.1×11.2 mm |
| superfície | Clear, Antireflection |
| brilho | 250 cd/m² (Typ.) |
| taxa de contraste | 150:1 (Typ.) |
| exibir cores | 262K (6-bit), CIE193145% |
| tempo de resposta | 50/50 (Typ.)(Tr/Td) |
| ângulo de visão | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 2 pcsCCFLEmbedded (Inverter) |
| interface de sinal | CMOS (1 ch, 6-bit), 31 pins |
| tensão de entrada | 3.3/5.0V (Typ.)(VCC) |
| aplicativo | IA |
