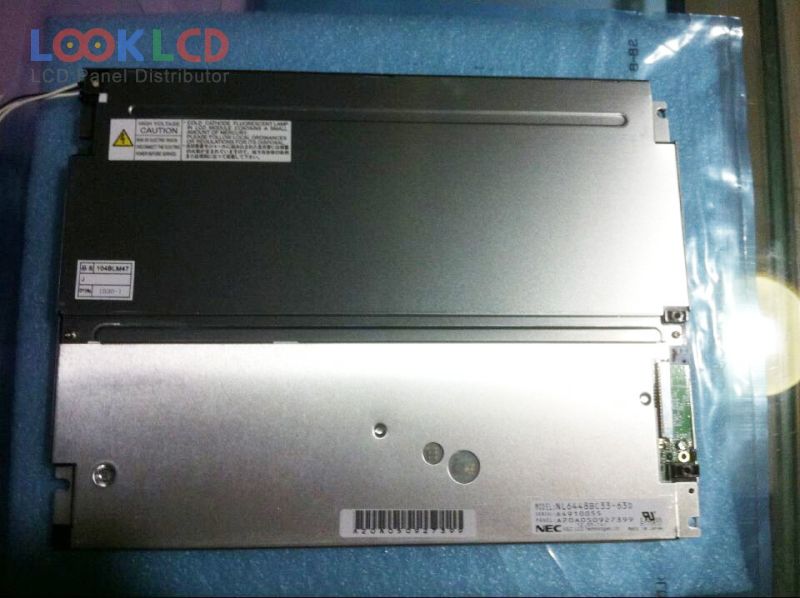

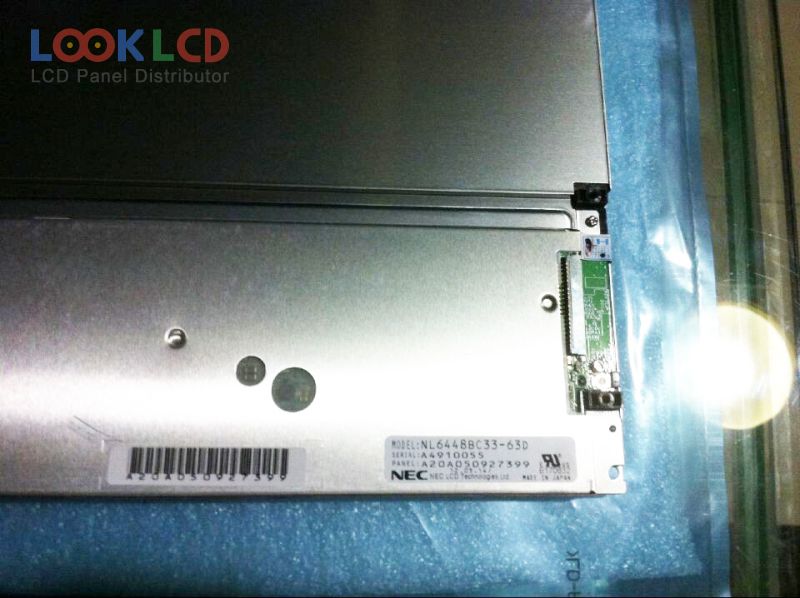

| Número da peça | NL6448BC33-63D |
| Marca | NLT |
| Tamanho | 10.4 |
| Aplicativo | IA |
| Resolução | 640×480 |
| Composição | LCM |
| Brilho | 450 |
| CR | 600:1 |
| cores | 262K/16.7M |
| luz de fundo | CCFL |
| Interface | LVDS |
| marca do painel | NEC |
| modelo de painel | NL6448BC33-63D |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 10.4 inch |
| resolução | 640(RGB)×480 , VGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 211.2×158.4 mm |
| contorno | 243×185.1×11 mm |
| superfície | Antiglare, Hard coating (3H) |
| brilho | 450 cd/m² (Typ.) |
| taxa de contraste | 600:1 (Typ.) |
| exibir cores | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| tempo de resposta | 6/19 (Typ.)(Tr/Td) |
| ângulo de visão | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 2 pcsCCFLWithout Driver |
| interface de sinal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | IA |
