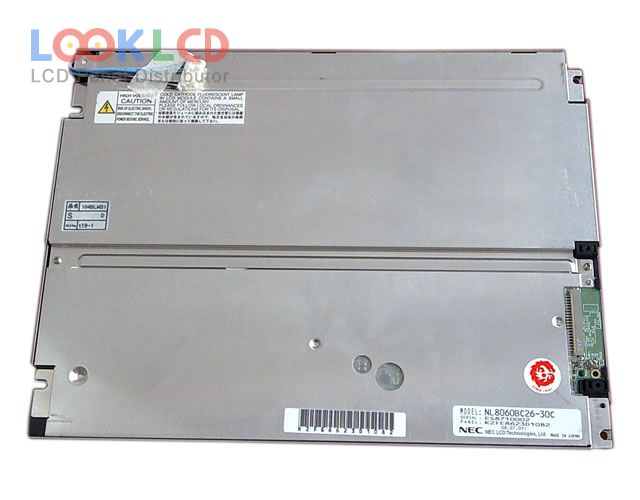

| Número da peça | NL8060BC26-30C |
| Marca | NLT |
| Tamanho | 10.4 |
| Aplicativo | IA |
| Resolução | 800×600 |
| Composição | LCM |
| Brilho | 550 |
| CR | 900:1 |
| cores | 262K/16.7M |
| luz de fundo | CCFL |
| Interface | LVDS |
| marca do painel | NEC |
| modelo de painel | NL8060BC26-30C |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 10.4 inch |
| resolução | 800(RGB)×600 , SVGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 211.2×158.4 mm |
| contorno | 243×185.1×11 mm |
| superfície | Clear, Hard coating (2H), Antireflection |
| brilho | 550 cd/m² (Typ.) |
| taxa de contraste | 900:1 (Typ.) |
| exibir cores | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| tempo de resposta | 3/15 (Typ.)(Tr/Td) |
| ângulo de visão | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 2 pcsCCFLWithout Driver |
| interface de sinal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | IA |
| NL8060BC21-11F | NLT | 8.4 | 800×600 |
| NL8060BC26-11 | NLT | 10.4 | 800×600 |
| NL8060BC26-15 | NLT | 10.4 | 800×600 |
| NL8060BC26-17 | NLT | 10.4 | 800×600 |
| NL8060BC31-02 | NLT | 12.1 | 800×600 |
| NL8060BC31-13A | NLT | 12.1 | 800×600 |
| NL8060BC31-27D | NLT | 12.1 | 800×600 |
| NL8060BC31-41E | NLT | 12.1 | 800×600 |
| NL8060BC31-42D | NLT | 12.1 | 800×600 |
| NL8060BC31-47D | NLT | 12.1 | 800×600 |
| AM-800480STMQW-W0 | AMPIRE | 7.0 | 800×480 |
| FX050605DNCWAG03 | Data Image | 5.6 | |
| HV121X02-100 | HYDIS | 12.1 | 1024×768 |
| KG057QV1CA-G02 | Kyocera | 5.7 | 320×240 |
| KS3224ASTT-FW-X2 | Kyocera | 5.7 | 320×240 |
| LJ089MB2S01 | SHARP | 8.9 | 640×400 |
| LM-CE53-22NEK | SANYO | 9.4 | 640×480 |
| LQ9D024 | SHARP | 8.4 | 640×480 |
| TM057QVHG01 | Tianma | 5.7 | 640×480 |
| TM121SV-A01 | SANYO | 12.1 | 800×600 |
