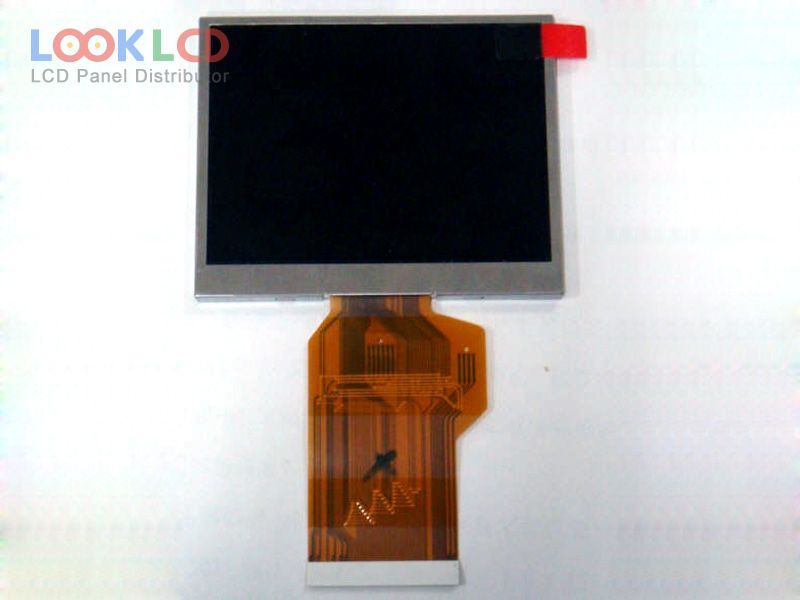

| Número da peça | PT035TN01 V.3 |
| Marca | Innolux |
| Tamanho | 3.5 |
| Aplicativo | PND |
| Resolução | 320×240 |
| Composição | LCM |
| Brilho | 250 |
| CR | 300:1 |
| cores | 16.7M |
| luz de fundo | WLED |
| Interface | Parallel/Serial |
| marca do painel | INNOLUX |
| modelo de painel | PT035TN01 V.3 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 3.5 inch |
| resolução | 320(RGB)×240 , QVGA |
| modo de exibição | TN, Normally White, TMR |
| área ativa | 70.08×52.56 mm |
| contorno | 78.2×65×3.8 mm |
| superfície | Hard coating |
| brilho | 250 cd/m² (Typ.) |
| taxa de contraste | 300 : 1 (Typ.) |
| exibir cores | 16.7M (8-bit) |
| tempo de resposta | 15/20 (Typ.)(Tr/Td) |
| ângulo de visão | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 6S1PWLEDWithout Driver |
| interface de sinal | Digital RGB (8/24-bit) + SPI, CCIR601/656, 60 pins |
| tensão de entrada | 3.3/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicativo | PND |
