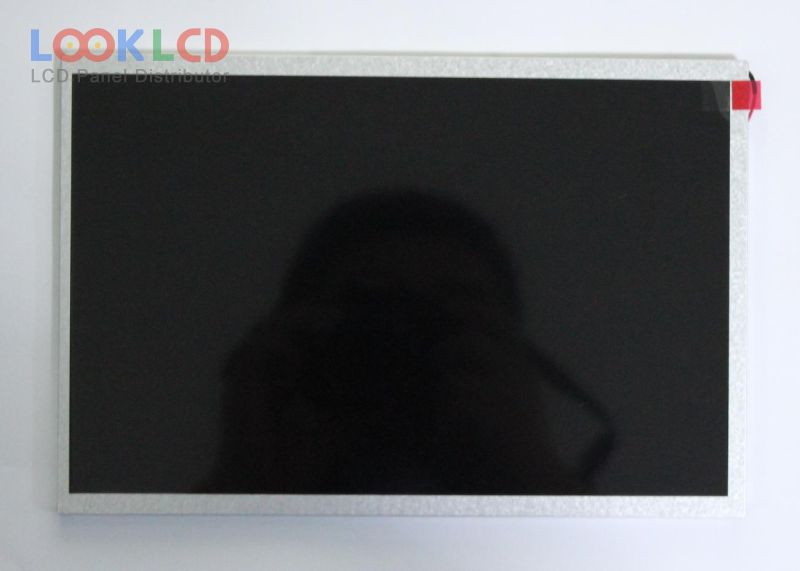

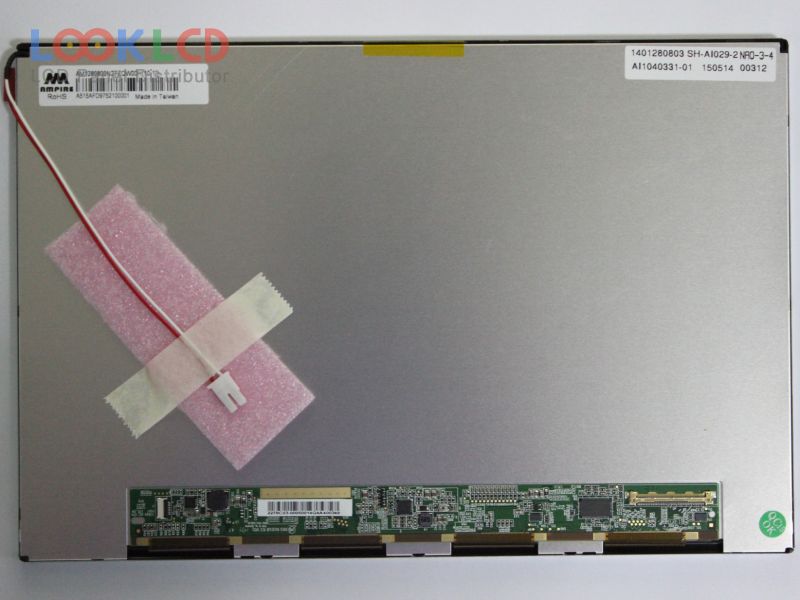

| Número da peça | AM-1280800N2TZQW-00H |
| Marca | AMPIRE |
| Tamanho | 10.1 |
| Aplicativo | IA |
| Resolução | 1280×800 |
| Composição | LCM |
| Brilho | 1000 |
| CR | 800:1 |
| cores | 16.7M |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | AMPIRE |
| modelo de painel | AM-1280800N2TZQW-00H |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 10.1 inch |
| resolução | 1280(RGB)×800 , WXGA |
| modo de exibição | IPS, Normally Black, Transmissive |
| área ativa | 216.96×135.6 mm |
| contorno | 231×154.4×6.2 mm |
| superfície | Hard coating |
| brilho | 1000 cd/m² (Typ.) |
| taxa de contraste | 800:1 (Typ.) |
| exibir cores | 16.7M (8-bit), CIE193145% |
| tempo de resposta | 25 (Typ.)(Tr+Td) |
| ângulo de visão | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 7S6PWLEDWithout Driver |
| interface de sinal | LVDS (1 ch, 8-bit), 40 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | IA |
