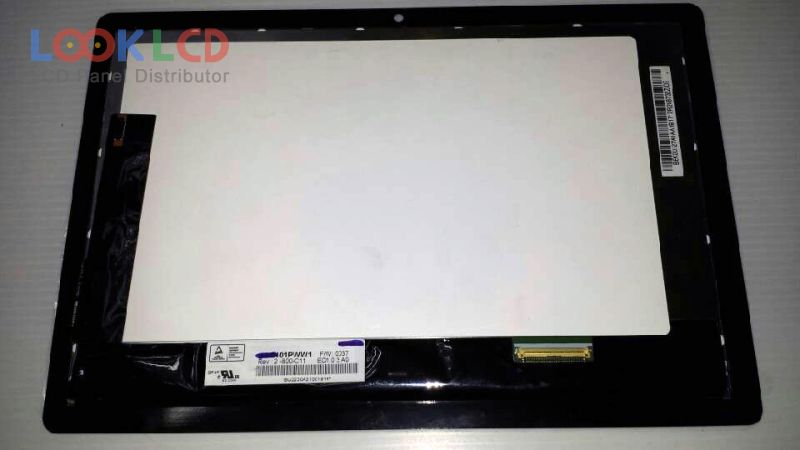

| Número da peça | HSD101PWW1-B00-C11 |
| Marca | HannStar |
| Tamanho | 10.1 |
| Aplicativo | PAD |
| Resolução | 1280×800 |
| Composição | Assembly |
| Brilho | 290 |
| CR | 800:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | HannStar |
| modelo de painel | HSD101PWW1-B00-C11 |
| tipo de painel | a-Si TFT-LCD , Assembly |
| tamanho do painel | 10.1 inch |
| resolução | 1280(RGB)×800 , WXGA |
| área ativa | 216.96×135.6 mm |
| contorno | 250.8×169.8×7.05 mm |
| superfície | Anti Fingerprint |
| brilho | 290 cd/m² (Typ.) |
| taxa de contraste | 800:1 (Typ.) |
| exibir cores | 262K (6-bit), CIE193145% |
| ângulo de visão | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| interface de sinal | LVDS (1 ch, 6-bit), 40 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | PAD |
