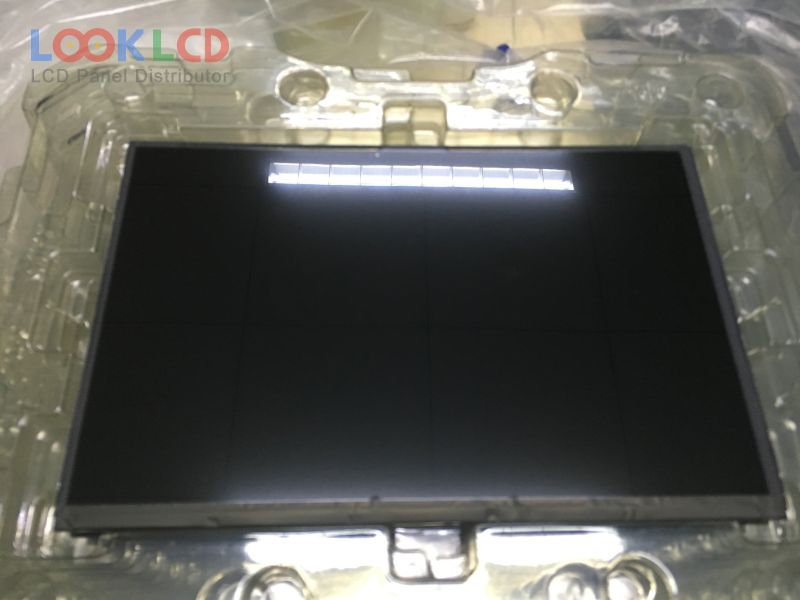

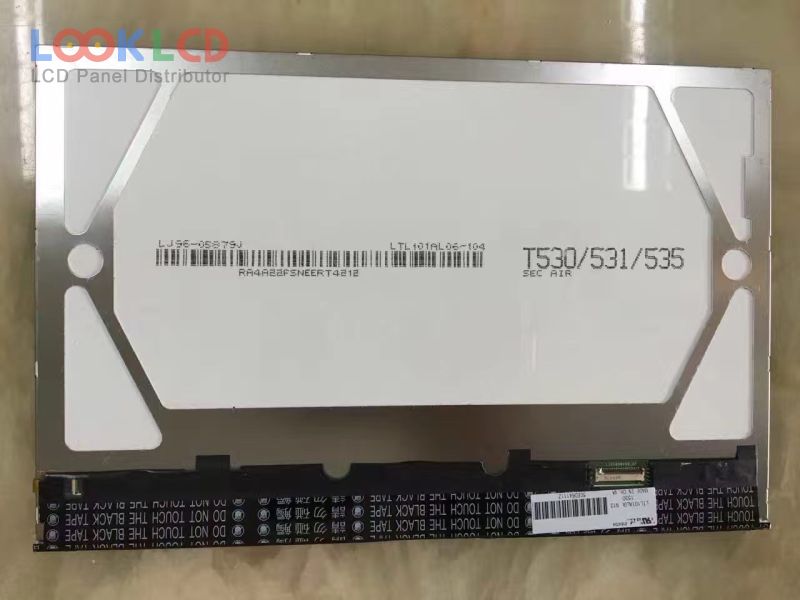

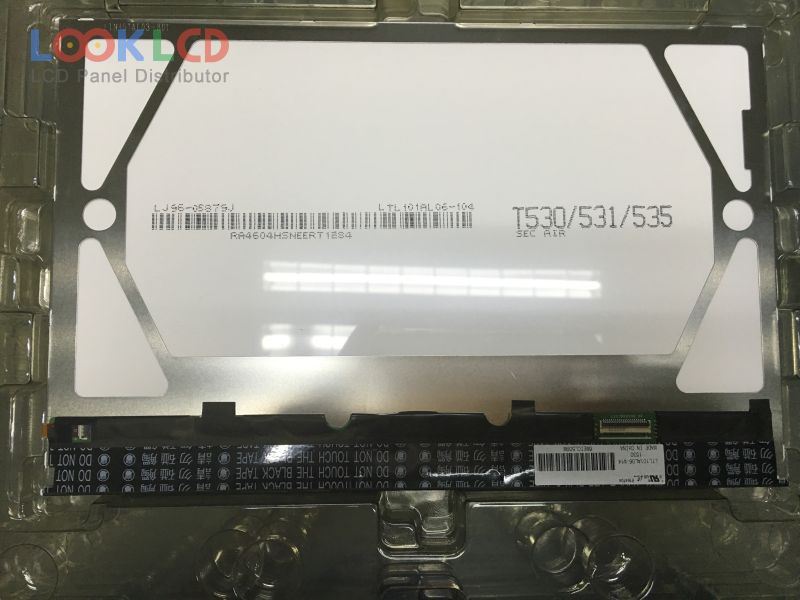

| Número da peça | LTL101AL06-104 |
| Marca | Samsung |
| Tamanho | 10.1 |
| Aplicativo | PAD |
| Resolução | 1280×800 |
| Composição | LCM |
| Brilho | 450 |
| CR | 900:1 |
| cores | 16.2M |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | SAMSUNG |
| modelo de painel | LTL101AL06-104 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 10.1 inch |
| resolução | 1280(RGB)×800 , WXGA |
| modo de exibição | PLS, Normally Black, Transmissive |
| área ativa | 216.96×135.6 mm |
| contorno | 228.21×148.86×4.59 mm |
| superfície | Hard coating (3H) |
| brilho | 450 cd/m² (Typ.) |
| taxa de contraste | 900:1 (Typ.) |
| exibir cores | 16.2M (6-bit + FRC), CIE193150% |
| tempo de resposta | 30 (Typ.)(Tr+Td) |
| ângulo de visão | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 4 stringsWLEDWithout Driver |
| interface de sinal | LVDS (1 ch, 8-bit), 45 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | PAD |
