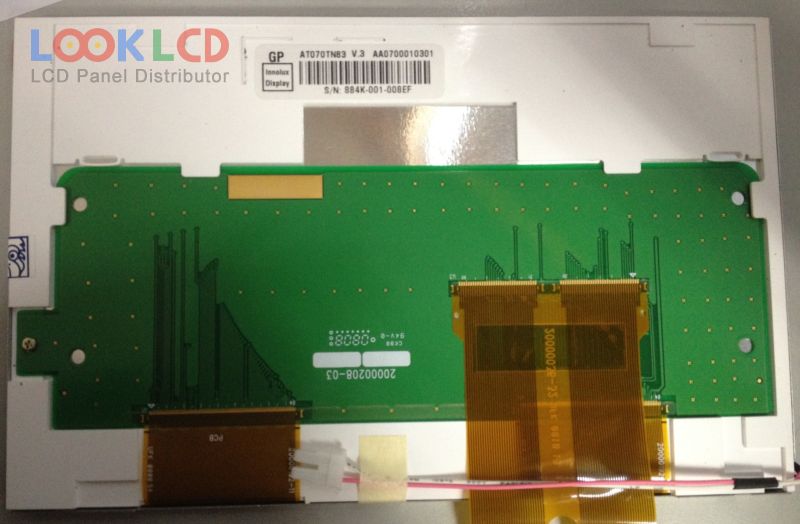

| Número da peça | AT070TN83 V.3 |
| Marca | Innolux |
| Tamanho | 7.0 |
| Aplicativo | MP4 |
| Resolução | 800×480 |
| Composição | LCM |
| Brilho | 300 |
| CR | 500:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | TTL |
| marca do painel | INNOLUX |
| modelo de painel | AT070TN83 V.3 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 7.0 inch |
| resolução | 800(RGB)×480 , WVGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 152.4×91.44 mm |
| contorno | 165×104×5.8 mm |
| superfície | Antiglare |
| brilho | 300 cd/m² (Typ.) |
| taxa de contraste | 500:1 (Typ.) |
| exibir cores | 262K (6-bit) |
| tempo de resposta | 10/15 (Typ.)(Tr/Td) |
| ângulo de visão | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| tipo de lâmpada | 3S9PWLEDWithout Driver |
| interface de sinal | Parallel RGB (1 ch, 6-bit), 60 pins |
| tensão de entrada | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicativo | MP4 |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN84 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| HJ070NA-01U | Innolux | 7.0 | 1024×600 |
| HSD070PFW3-B02 | HannStar | 7.0 | 1024×600 |
| HV070WS1-1E1 | HYDIS | 7.0 | 1024×600 |
| LMS700KF01-001 | Samsung | 7.0 | 800×480 |
| N070LGE-L21 | Innolux | 7.0 | 1024×600 |
| N070LGE-L41 | Innolux | 7.0 | 1024×600 |
| Q070LRE-L81 | Innolux | 7.0 | 1024×600 |
| TM070DDH08 | Tianma | 7.0 | 1024×600 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
