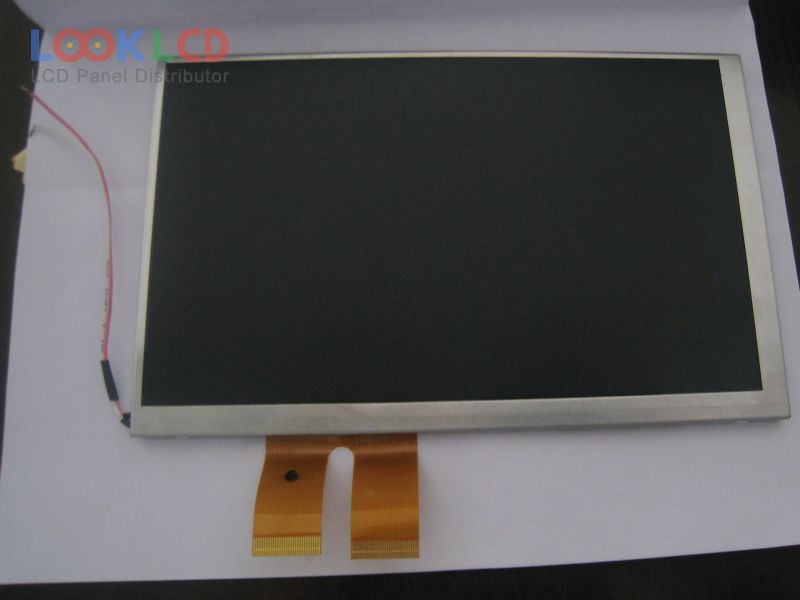

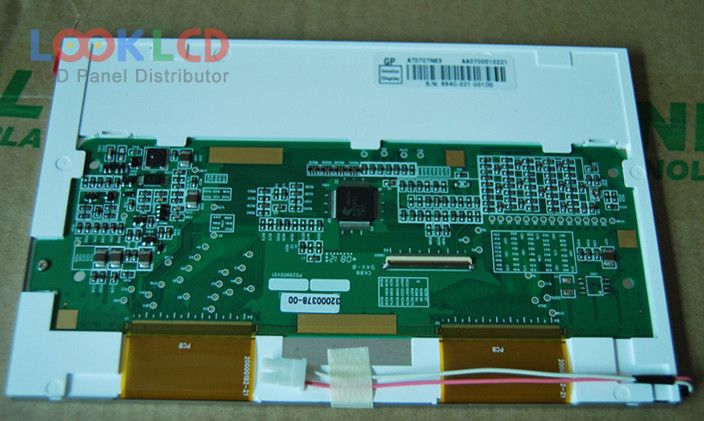

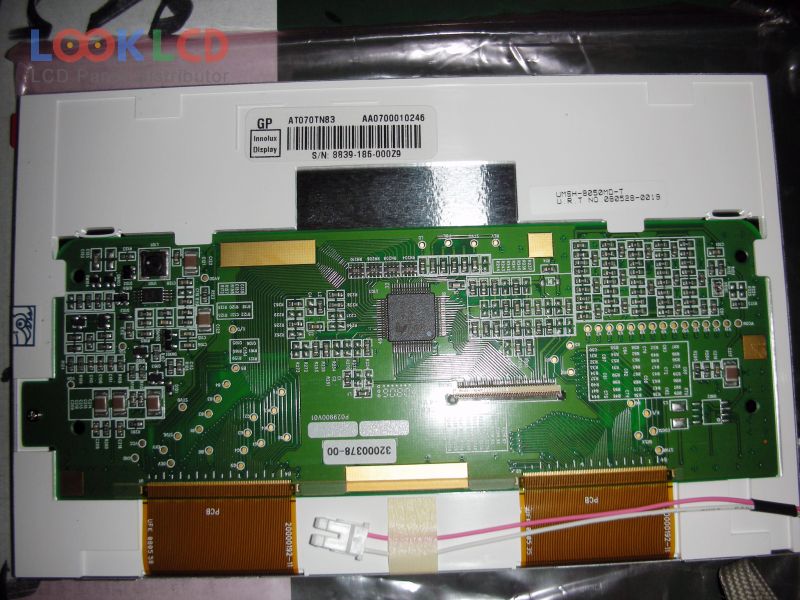

| Número da peça | AT070TN83 |
| Marca | Innolux |
| Tamanho | 7.0 |
| Aplicativo | MP4 |
| Resolução | 800×480 |
| Composição | LCM |
| Brilho | 300 |
| CR | 500:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | TTL |
| marca do painel | INNOLUX |
| modelo de painel | AT070TN83 0 Compatible model |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 7.0 inch |
| resolução | 800(RGB)×480 , WVGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 152.4×91.44 mm |
| contorno | 165×104×5.8 mm |
| superfície | Antiglare |
| brilho | 300 cd/m² (Typ.) |
| taxa de contraste | 500:1 (Typ.) |
| exibir cores | 262K (6-bit) |
| tempo de resposta | 10/15 (Typ.)(Tr/Td) |
| ângulo de visão | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| tipo de lâmpada | 3S9PWLEDWithout Driver |
| interface de sinal | TTL (1 ch, 6-bit), 40 pins |
| tensão de entrada | 3.3V (Typ.)(VCC) |
| aplicativo | MP4 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| AT070TN82 | Innolux | 7.0 | 800×480 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| AT070TN94 | Innolux | 7.0 | 800×480 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| CLAA070LC0ACW | CPT | 7.0 | 800×480 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| CLAA070NQ02 XN | CPT | 7.0 | 1024×600 |
| DLC0700JMG-6 | Other | 7.0 | 1024×600 |
| HJ070NA-01U | Innolux | 7.0 | 1024×600 |
| LMS430HF11-003 | Samsung | 4.3 | 480×272 |
| TM070DDH01 | Tianma | 7.0 | 1024×600 |
