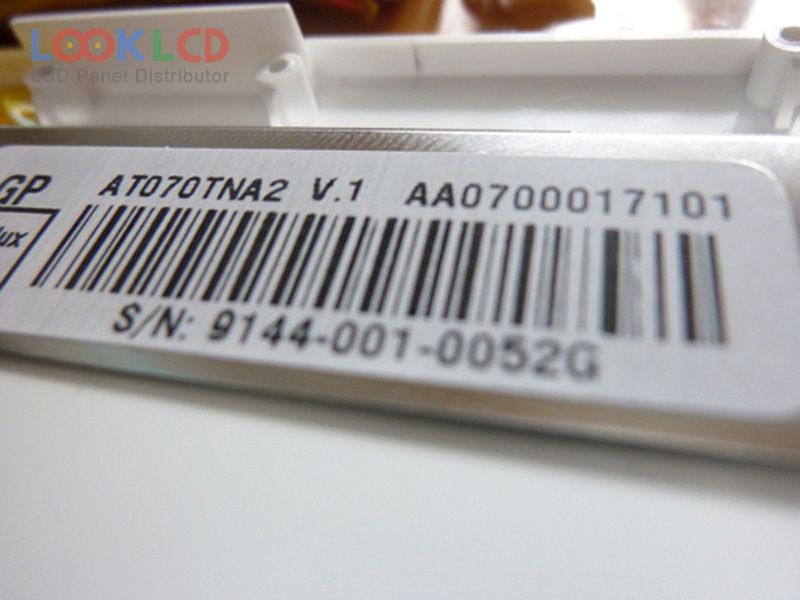

| Número da peça | AT070TNA2 V.1 |
| Marca | Innolux |
| Tamanho | 7.0 |
| Aplicativo | MP4 |
| Resolução | 1024×600 |
| Composição | LCM |
| Brilho | 250 |
| CR | 700:1 |
| cores | 262K/16.7M |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | CHIMEI INNOLUX |
| modelo de painel | AT070TNA2 V.1 4 Compatible model |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 7.0 inch |
| resolução | 1024(RGB)×600 , WSVGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 153.6×90 mm |
| contorno | 165.75×105.39×3.7 mm |
| superfície | Glare (Haze 0%), Hard coating |
| brilho | 250 cd/m² (Typ.) |
| taxa de contraste | 700:1 (Typ.) |
| exibir cores | 262K/16.7M (6-bit / 6-bit + Dithering) |
| tempo de resposta | 10/15 (Typ.)(Tr/Td) |
| ângulo de visão | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 3S6PWLEDWithout Driver |
| interface de sinal | LVDS (1 ch, 6/8-bit), 40 pins |
| tensão de entrada | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicativo | MP4 |
