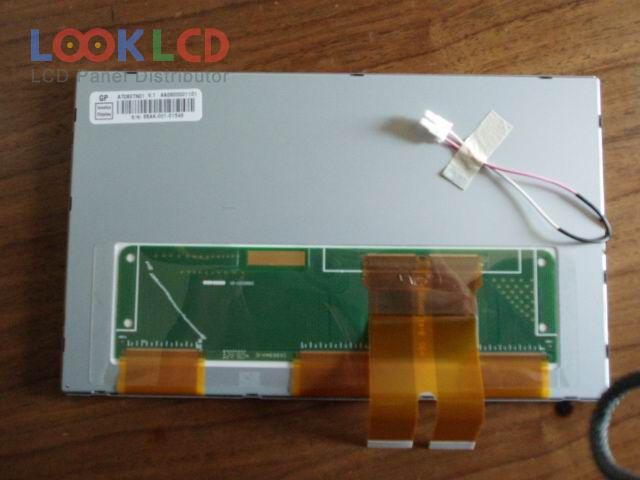

| Número da peça | AT080TN01 |
| Marca | Innolux |
| Tamanho | 8.0 |
| Aplicativo | DPF |
| Resolução | 800×480 |
| Composição | LCM |
| Brilho | 350 |
| CR | 300:1 |
| cores | 262K |
| luz de fundo | CCFL |
| Interface | TTL |
| marca do painel | INNOLUX |
| modelo de painel | AT080TN01 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 8.0 inch |
| resolução | 800(RGB)×480 , WVGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 176.64×99.36 mm |
| contorno | 192.8×116.9×6.7 mm |
| superfície | Antiglare |
| brilho | 350 cd/m² (Typ.) |
| taxa de contraste | 300:1 (Typ.) |
| exibir cores | 262K (6-bit) |
| tempo de resposta | 15/20 (Typ.)(Tr/Td) |
| ângulo de visão | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| tipo de lâmpada | 1 pcsCCFLWithout Driver |
| interface de sinal | Parallel RGB (1 ch, 6-bit), 60 pins |
| tensão de entrada | 3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| aplicativo | DPF |
