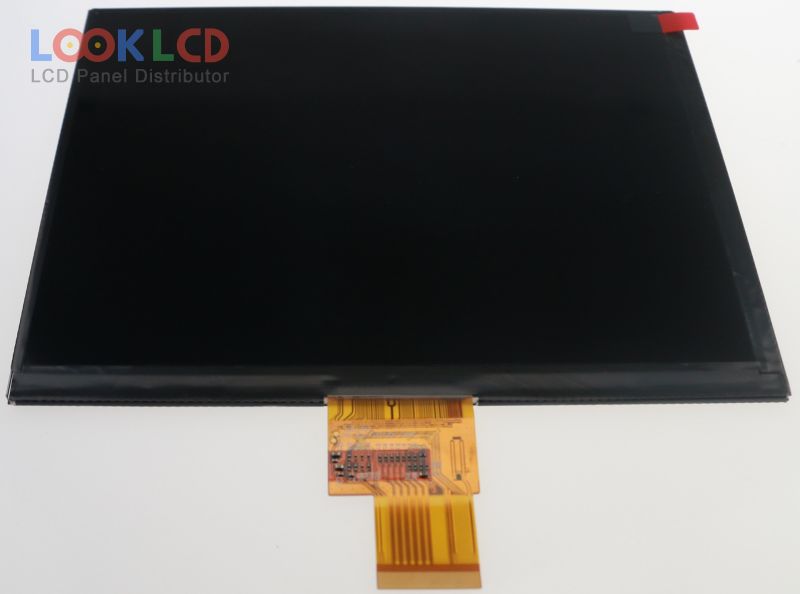

| Número da peça | HJ080IA-01F |
| Marca | Innolux |
| Tamanho | 8.0 |
| Aplicativo | DPF |
| Resolução | 1024×768 |
| Composição | LCM |
| Brilho | 350 |
| CR | 800:1 |
| cores | 262K/16.7M |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | CHIMEI INNOLUX |
| modelo de painel | HJ080IA-01F |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 8.0 inch |
| resolução | 1024(RGB)×768 , XGA |
| modo de exibição | IPS, Normally Black, Transmissive |
| área ativa | 162.048×121.536 mm |
| contorno | 174×136×2.65 mm |
| superfície | Hard coating |
| brilho | 350 cd/m² (Typ.) |
| taxa de contraste | 800:1 (Typ.) |
| exibir cores | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| tempo de resposta | 25 (Typ.)(Tr+Td) |
| ângulo de visão | 85/85/85/85 (Typ.)(CR＞10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 3S9PWLEDWithout Driver |
| interface de sinal | LVDS (1 ch, 6/8-bit), 40 pins |
| tensão de entrada | 3.3/10/18.9/-7.8V (VCC/AVDD/VGH/VGL) |
| aplicativo | DPF |
