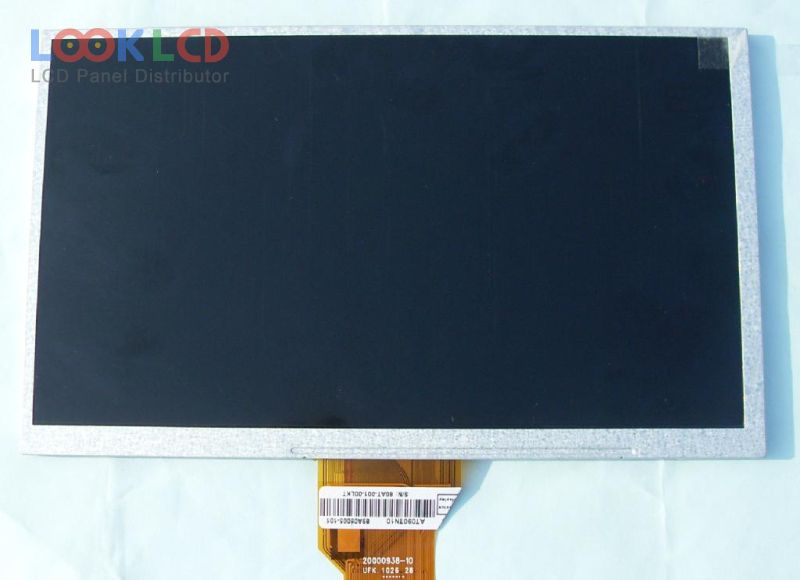

| Número da peça | AT090TN10 |
| Marca | Innolux |
| Tamanho | 9.0 |
| Aplicativo | DPF |
| Resolução | 800×480 |
| Composição | LCM |
| Brilho | 250 |
| CR | 500:1 |
| cores | 262K/16.7M |
| luz de fundo | WLED |
| Interface | TTL |
| marca do painel | CHIMEI INNOLUX |
| modelo de painel | AT090TN10 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 9.0 inch |
| resolução | 800(RGB)×480 , WVGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 198×111.696 mm |
| contorno | 211.1×126.5 mm |
| superfície | Antiglare |
| brilho | 250 cd/m² (Typ.) |
| taxa de contraste | 500:1 (Typ.) |
| exibir cores | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| tempo de resposta | 10/15 (Typ.)(Tr/Td) |
| ângulo de visão | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| tipo de lâmpada | WLEDWithout Driver |
| interface de sinal | TTL (1 ch, 6/8-bit), 50 pins |
| tensão de entrada | 3.3/10.4/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicativo | DPF |
