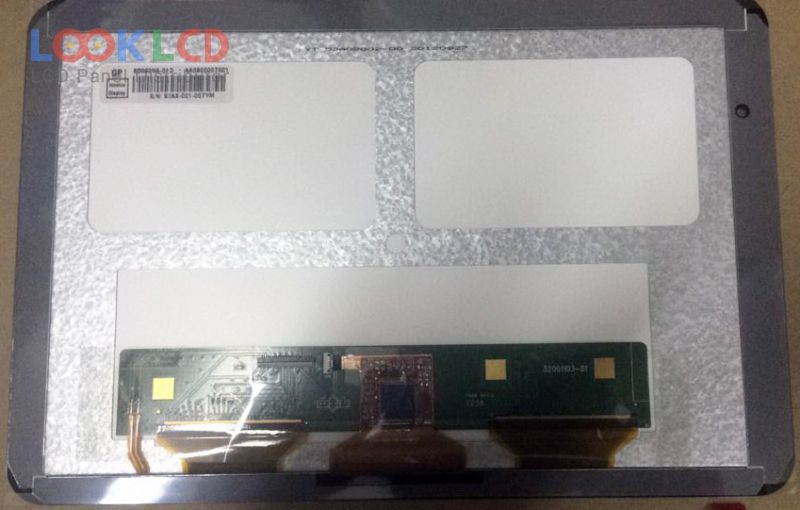

| Número da peça | ED090NA-01D |
| Marca | Innolux |
| Tamanho | 9.0 |
| Aplicativo | PAD |
| Resolução | 1280×800 |
| Composição | Assembly |
| Brilho | 200 |
| CR | 700:1 |
| cores | 262K/16.7M |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | CHIMEI INNOLUX |
| modelo de painel | ED090NA-01D |
| tipo de painel | a-Si TFT-LCD , Assembly |
| tamanho do painel | 9.0 inch |
| resolução | 1280(RGB)×800 , WXGA |
| área ativa | 193.92×121.2 mm |
| contorno | 235.12×156.4×7.84 mm |
| superfície | Hard coating (7H) |
| brilho | 200 cd/m² (Typ.) |
| taxa de contraste | 700:1 (Typ.) |
| exibir cores | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| ângulo de visão | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| interface de sinal | LVDS (1 ch, 6/8-bit), 51 pins |
| tensão de entrada | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicativo | PAD |
