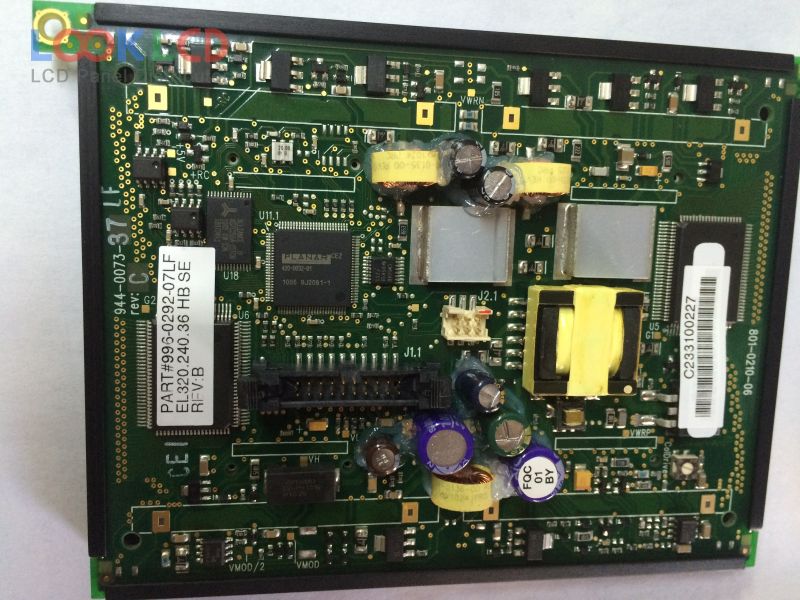

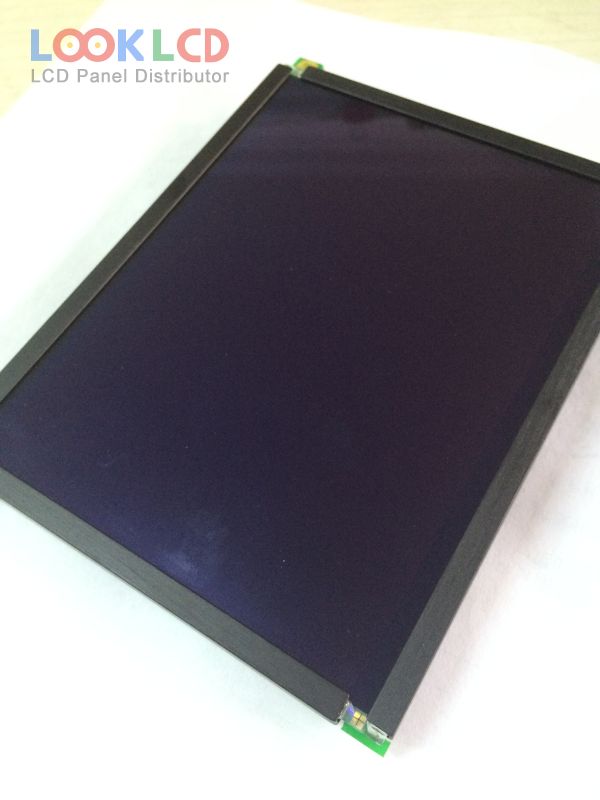

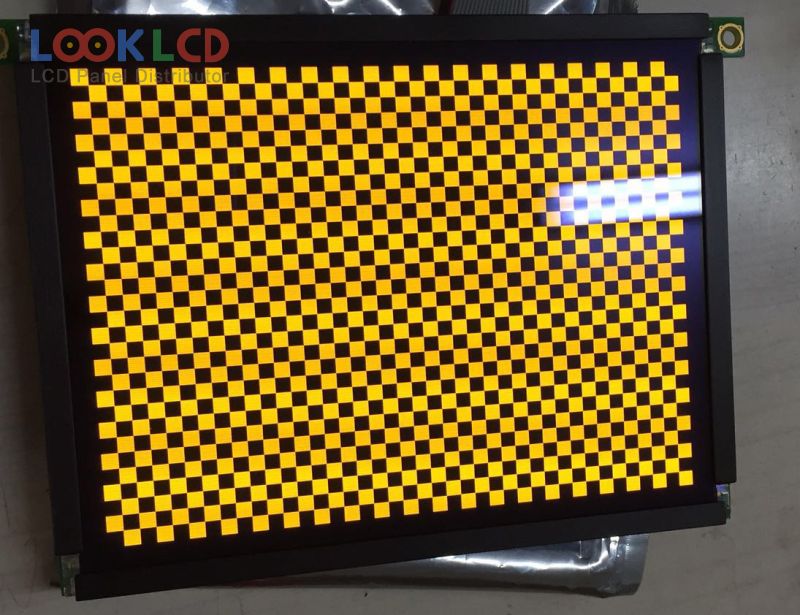

| Número da peça | EL320.240.36 HB SE |
| Marca | PLANAR |
| Tamanho | 5.7 |
| Aplicativo | IA |
| Resolução | 320×240 |
| Composição | EL |
| Brilho | 150 |
| CR | 90:1 |
| cores | Mono(Yellow) |
| luz de fundo | self |
| Interface | Parallel Data |
| marca do painel | PLANAR |
| modelo de painel | EL320.240.36 HB SE |
| tipo de painel | EL , EL |
| tamanho do painel | 5.7 inch |
| resolução | 320×240 , QVGA |
| área ativa | 115.1×86.3 mm |
| contorno | 148.1×104.7 mm |
| superfície | |
| brilho | 150 cd/m² (Typ.) |
| taxa de contraste | 90 : 1 (Typ.) |
| exibir cores | Mono(Yellow) (1-bit) |
| ângulo de visão | 89/89/89/89 (Typ.)(L/R/U/D) |
| frequência | 120Hz |
| interface de sinal | Parallel Data (1ch, 4-bit), 26 pins |
| tensão de entrada | 5/12V (Typ.)(VL/VH) |
| aplicativo | IA |
