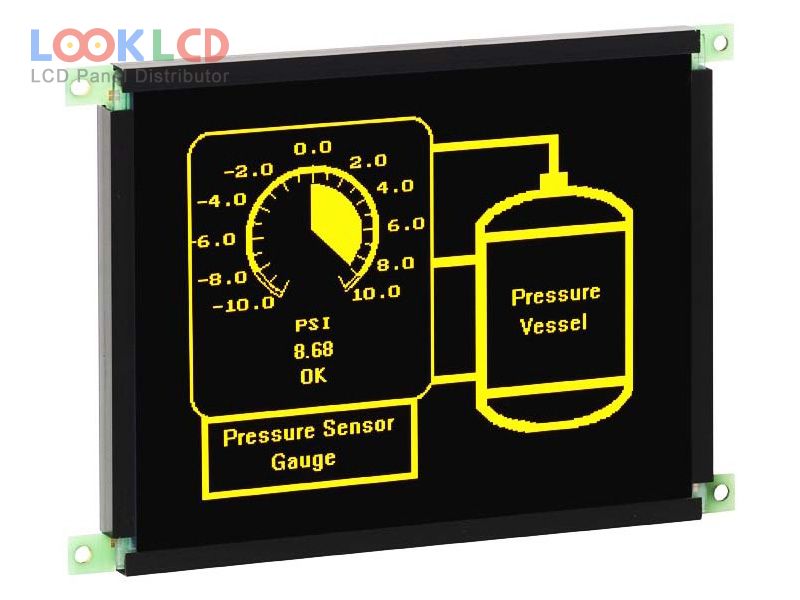

| Número da peça | EL320.240.36 HB |
| Marca | Lumineq |
| Tamanho | 5.7 |
| Aplicativo | IA |
| Resolução | 320×240 |
| Composição | EL |
| Brilho | 150 |
| CR | 90:1 |
| cores | Mono(Yellow) |
| luz de fundo | self |
| Interface | Parallel Data |
| marca do painel | Lumineq |
| modelo de painel | EL320.240.36 HB |
| tipo de painel | EL , EL |
| tamanho do painel | 5.7 inch |
| resolução | 320×240 , QVGA |
| área ativa | 115.1×86.3 mm |
| contorno | 148.1×104.7 mm |
| superfície | |
| brilho | 150 cd/m² (Typ.) |
| taxa de contraste | 90 : 1 (Typ.) |
| exibir cores | Mono(Yellow) (1-bit) |
| ângulo de visão | 89/89/89/89 (Typ.)(L/R/U/D) |
| frequência | 120Hz |
| interface de sinal | Parallel Data (1ch, 4-bit), 26 pins |
| tensão de entrada | 5/12V (Typ.)(VL/VH) |
| aplicativo | IA |
| EL320.240-FA3 CC | Lumineq | 4.9 | 320×240 |
| EL320.240.36 | Lumineq | 5.7 | 320×240 |
| EL320.240.36 ET | Lumineq | 5.7 | 320×240 |
| EL320.240.36 HB NE | PLANAR | 5.7 | 320×240 |
| EL320.240.36 HB SE | PLANAR | 5.7 | 320×240 |
| EL320.240.36 IN | Lumineq | 5.7 | 320×240 |
| EL320.240.36 IN AG | Lumineq | 5.7 | 320×240 |
| EL320.240.36 LK | Lumineq | 5.7 | 320×240 |
| EL320.256-FD6 | Lumineq | 4.8 | 320×256 |
| EL320.256-FD7 HB | Lumineq | 4.8 | 320×256 |
| AA121SL01 | Mitsubishi | 12.1 | 800×600 |
| EL240.128.45 | Lumineq | 4.8 | 240×128 |
| EL640.400-C3 FRA | Lumineq | 9.1 | 640×400 |
| EL640.400-CB1 FRA | Lumineq | 9.1 | 640×400 |
| LQ10D41 | SHARP | 10.4 | 640×480 |
| LQ12X12 | SHARP | 12.1 | 1024×768 |
| LTD104C11Z | TOSHIBA | 10.4 | 640×480 |
| TCG035QVLPDANN-GN50 | Kyocera | 3.5 | 320×240 |
| TM150TDSG52 | Tianma | 15.0 | 1024×768 |
| TM240128ABCWVBYD | Tianma | 4.8 | 240×128 |
