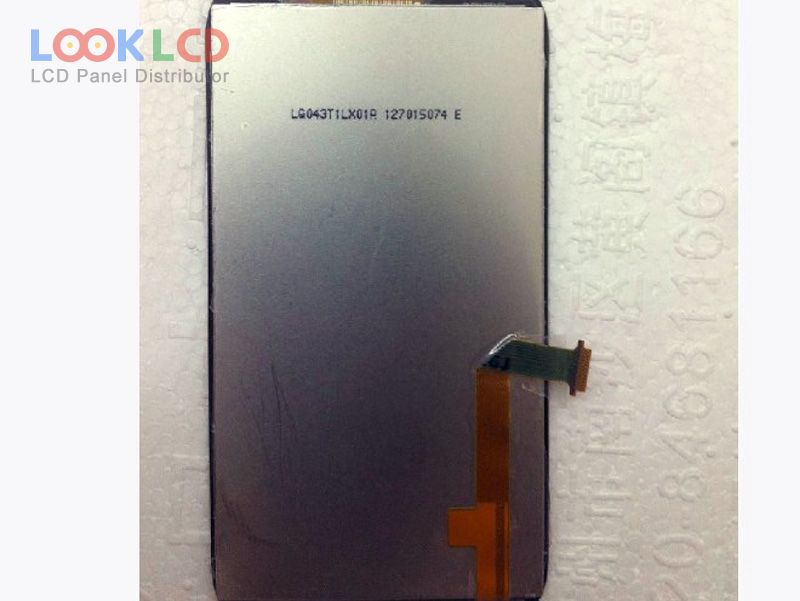

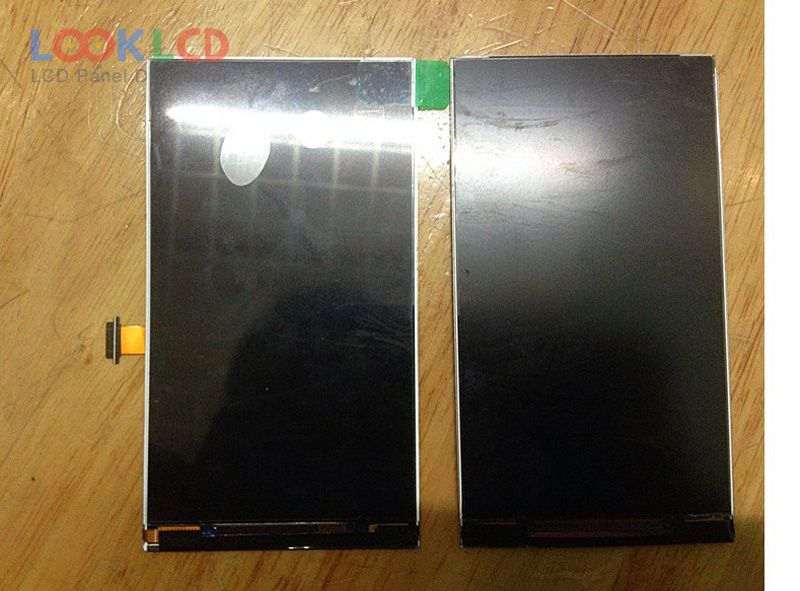

| Número da peça | LQ043T1LX01A |
| Marca | SHARP |
| Tamanho | 4.3 |
| Aplicativo | MPH |
| Resolução | 540×960 |
| Composição | LCM |
| Brilho | 500 |
| CR | 1000:1 |
| cores | 16.7M |
| luz de fundo | WLED |
| Interface | MDDI/MIPI |
| marca do painel | SHARP |
| modelo de painel | LQ043T1LX01A |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 4.3 inch |
| resolução | 540(RGB)×960 , qHD |
| modo de exibição | ASV, Normally Black, Transmissive |
| área ativa | 53.46×95.04 mm |
| contorno | 58.54×105.7 mm |
| superfície | Hard coating (3H) |
| brilho | 500 cd/m² (Typ.) |
| taxa de contraste | 1000:1 (Typ.) |
| exibir cores | 16.7M (8-bit), CIE193170% |
| tempo de resposta | 35 (Max.)(Tr+Td) |
| ângulo de visão | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| tipo de lâmpada | 10S1PWLEDWithout Driver |
| interface de sinal | MDDI/MIPI, 25 pins |
| tensão de entrada | 1.8/3.1V (Typ.)(IOVDD/AVDD) |
| aplicativo | MPH |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
| LQ043T1LX01A | SHARP | 4.3 | 540×960 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LQ043T3DG02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
| AMS470GS16-1 | Samsung | 4.7 | 720×1280 |
| H429AL01 V0 | AUO | 4.3 | 540×960 |
| LH350WS1-SD01 | LG Display | 3.5 | 640×960 |
| LMS241GF31 | Samsung | 2.4 | 240×320 |
| LS037V7DD06 | SHARP | 3.7 | 480×640 |
| LS041Y3LW01 | SHARP | 4.1 | 800×480 |
| LS050T1SX04 | SHARP | 5.0 | 1080×1920 |
| LT041MDM6000 | TOSHIBA | 4.1 | 480×800 |
| TFT240320-237-E | Other | 2.8 | 240×320 |
| TX11D101VM0EAA | KOE | 4.3 | 480×800 |
