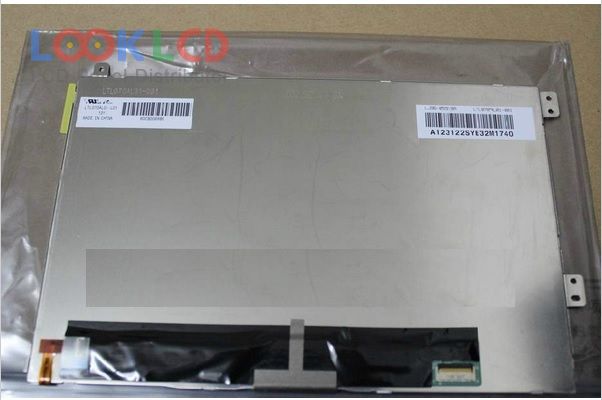

| Número da peça | LTL070AL01-L01 |
| Marca | Samsung |
| Tamanho | 7.0 |
| Aplicativo | UMPC |
| Resolução | 1280×800 |
| Composição | LCM |
| Brilho | 400 |
| CR | 800:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | SAMSUNG |
| modelo de painel | LTL070AL01-L01 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 7.0 inch |
| resolução | 1280(RGB)×800 , WXGA |
| modo de exibição | PLS, Normally Black, Transmissive |
| área ativa | 150.72×94.2 mm |
| contorno | 164.2×106.75×4.42 mm |
| superfície | Glare (Haze 0%), Hard coating (2H), Reflection 1.2% (Typ.) |
| brilho | 400 cd/m² (Typ.) |
| taxa de contraste | 800:1 (Typ.) |
| exibir cores | 262K (6-bit), CIE193150% |
| tempo de resposta | 30 (Typ.)(Tr+Td) |
| ângulo de visão | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 6S4PWLEDWithout Driver |
| interface de sinal | LVDS (1 ch, 6-bit), 31 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | UMPC |
