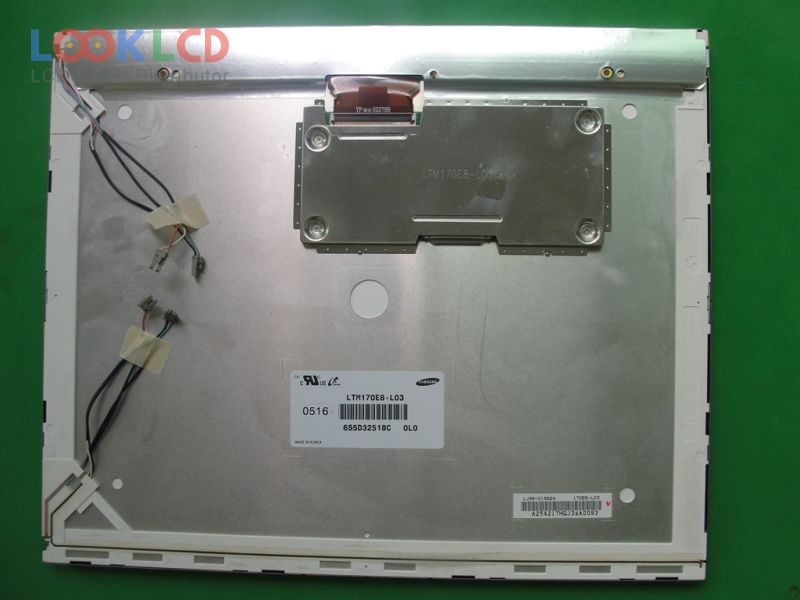

| Número da peça | LTM170E8-L03 |
| Marca | Samsung |
| Tamanho | 17.0 |
| Aplicativo | DMPC |
| Resolução | 1280×1024 |
| Composição | LCM |
| Brilho | 280 |
| CR | 1500:1 |
| cores | 16.7M |
| luz de fundo | CCFL |
| Interface | LVDS |
| marca do painel | SAMSUNG |
| modelo de painel | LTM170E8-L03 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 17.0 inch |
| resolução | 1280(RGB)×1024 , SXGA |
| modo de exibição | PVA, Normally Black, Transmissive |
| área ativa | 337.92×270.336 mm |
| contorno | 354.9×290.3×16.5 mm |
| superfície | Antiglare (Haze 44%), Hard coating (3H) |
| brilho | 280 cd/m² (Typ.) |
| taxa de contraste | 1500:1 (Typ.) |
| exibir cores | 16.7M (8-bit), CIE193172% |
| tempo de resposta | 14 (Typ.)(Tr+Td); 8 (Typ.)(G to G) |
| ângulo de visão | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 4 pcsCCFLWithout Driver |
| interface de sinal | LVDS (2 ch, 8-bit), 30 pins |
| tensão de entrada | 5.0V (Typ.) |
| aplicativo | DMPC |
