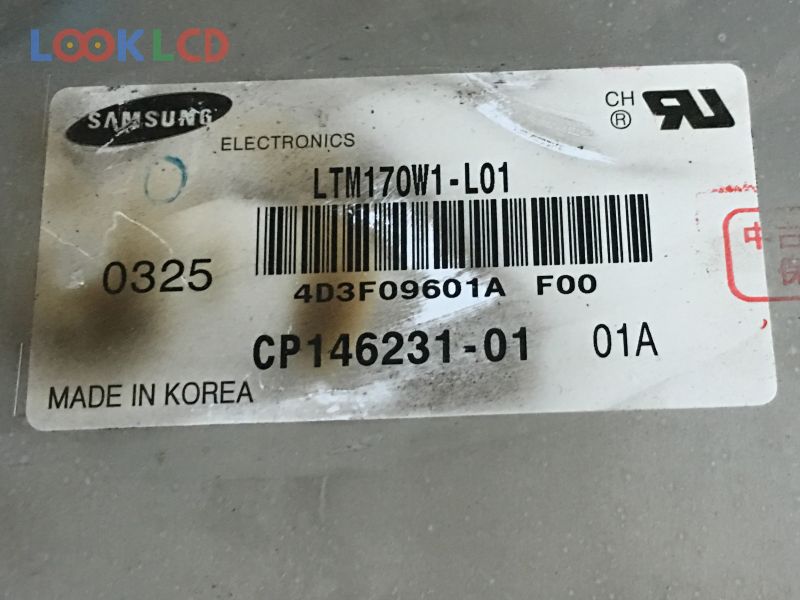

| Número da peça | LTM170W1-L01 |
| Marca | Samsung |
| Tamanho | 17.0 |
| Aplicativo | DMPC |
| Resolução | 1280×768 |
| Composição | LCM |
| Brilho | 450 |
| CR | 400:1 |
| cores | 16.2M |
| luz de fundo | CCFL |
| Interface | LVDS |
| marca do painel | SAMSUNG |
| modelo de painel | LTM170W1-L01 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 17.0 inch |
| resolução | 1280(RGB)×768 , WXGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 370.56×222.336 mm |
| contorno | 404×258×16.7 mm |
| superfície | Antiglare (Haze 25%), Hard coating (3H) |
| brilho | 450 cd/m² (Typ.) |
| taxa de contraste | 400:1 (Typ.) |
| exibir cores | 16.2M (6-bit + FRC) |
| tempo de resposta | 5/20 (Typ.)(Tr/Td) |
| ângulo de visão | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 4 pcsCCFLWithout Driver |
| interface de sinal | LVDS (1 ch, 8-bit), 20 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | DMPC |
