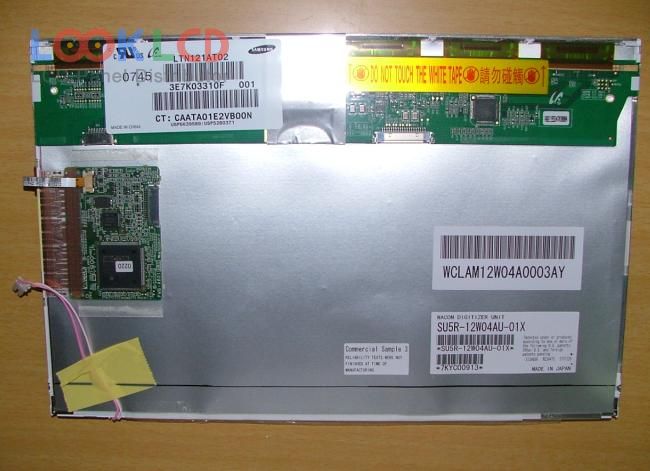

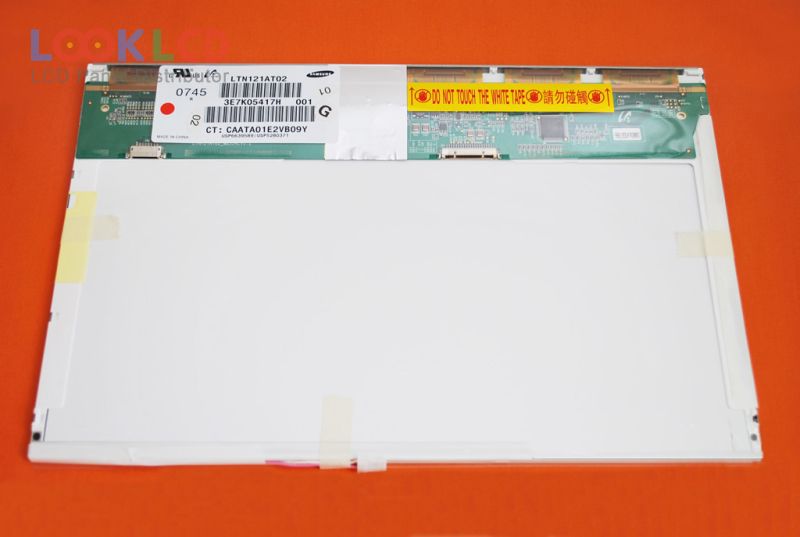

| Número da peça | LTN121AT02-001 |
| Marca | Samsung |
| Tamanho | 12.1 |
| Aplicativo | NBPC |
| Resolução | 1280×800 |
| Composição | LCM |
| Brilho | 200 |
| CR | 300:1 |
| cores | 262K |
| luz de fundo | CCFL |
| Interface | LVDS |
| marca do painel | SAMSUNG |
| modelo de painel | LTN121AT02-001 2 Compatible model |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 12.1 inch |
| resolução | 1280(RGB)×800 , WXGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 261.12×163.2 mm |
| contorno | 275.8×178×6.15 mm |
| superfície | Glare (Haze 0%), Hard coating (3H) |
| brilho | 200 cd/m² (Typ.) |
| taxa de contraste | 300:1 (Typ.) |
| exibir cores | 262K (6-bit) |
| tempo de resposta | 25 (Typ.)(Tr+Td) |
| ângulo de visão | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 1 pcsCCFLWithout Driver |
| interface de sinal | LVDS (1 ch, 6-bit), 20 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | NBPC |
| LTN121AP03-002 | Samsung | 12.1 | 1280×800 |
| LTN121AP05-302 | Samsung | 12.1 | 1280×800 |
| LTN121AP06-301 | Samsung | 12.1 | 1280×800 |
| LTN121AT01-001 | Samsung | 12.1 | 1280×800 |
| LTN121AT02-001 | Samsung | 12.1 | 1280×800 |
| LTN121AT02-A01 | Samsung | 12.1 | 1280×800 |
| LTN121AT04-001 | Samsung | 12.1 | 1280×800 |
| LTN121AT08 | Samsung | 12.1 | 1280×800 |
| LTN121AT11-801 | Samsung | 12.1 | 1280×800 |
| LTN121AT11-803 | Samsung | 12.1 | 1280×800 |
| B154SW02 V3 | AUO | 15.4 | 1680×1050 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| LP133WH2-TLM4 | LG Display | 13.3 | 1366×768 |
| LP156WH3-TLQ1 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TLA1 | LG Display | 15.6 | 1366×768 |
| LP173WF1-TLC1 | LG Display | 17.3 | 1920×1080 |
| LQ106K1LA01B | SHARP | 10.6 | 1280×768 |
| LT141DEQ8B00 | TOSHIBA | 14.1 | 1440×900 |
| LTN154AT01-A01 | Samsung | 15.4 | 1280×800 |
| M140NWR2 R1 | IVO | 14.0 | 1366×768 |
