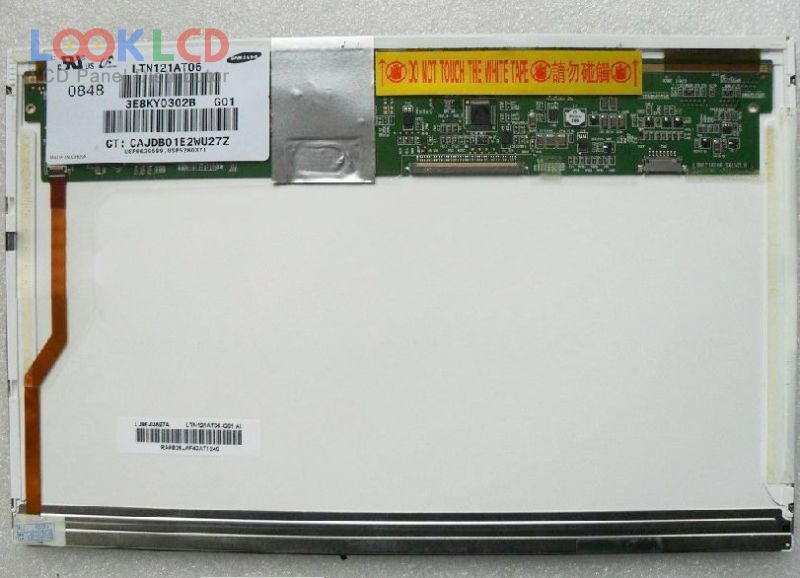

| Número da peça | LTN121AT06-G01 |
| Marca | Samsung |
| Tamanho | 12.1 |
| Aplicativo | NBPC |
| Resolução | 1280×800 |
| Composição | LCM |
| Brilho | 200 |
| CR | 500:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | SAMSUNG |
| modelo de painel | LTN121AT06-G01 5 Compatible model |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 12.1 inch |
| resolução | 1280(RGB)×800 , WXGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 261.12×163.2 mm |
| contorno | 275.8×178.1×5.5 mm |
| superfície | Glare (Haze 0%), Hard coating (3H) |
| brilho | 200 cd/m² (Typ.) |
| taxa de contraste | 500:1 (Typ.) |
| exibir cores | 262K (6-bit) |
| tempo de resposta | 25 (Typ.)(Tr+Td) |
| ângulo de visão | 45/45/20/30 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 6S6PWLEDEmbedded (LED Driver) |
| interface de sinal | LVDS (1 ch, 6-bit), 40 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | NBPC |
| LTN121AP03-001 | Samsung | 12.1 | 1280×800 |
| LTN121AP05-302 | Samsung | 12.1 | 1280×800 |
| LTN121AT01-001 | Samsung | 12.1 | 1280×800 |
| LTN121AT01-002 | Samsung | 12.1 | 1280×800 |
| LTN121AT04-001 | Samsung | 12.1 | 1280×800 |
| LTN121AT06-G01 | Samsung | 12.1 | 1280×800 |
| LTN121AT07-L02 | Samsung | 12.1 | 1280×800 |
| LTN121AT10-301 | Samsung | 12.1 | 1280×800 |
| LTN121AT11-801 | Samsung | 12.1 | 1280×800 |
| LTN121AT11-803 | Samsung | 12.1 | 1280×800 |
| B131HW02 V0 | AUO | 13.1 | 1920×1080 |
| BT140GW03 V.2 | Innolux | 14.0 | 1366×768 |
| LP140WH1-TPD1 | LG Display | 14.0 | 1366×768 |
| LP140WH6-TJA1 | LG Display | 14.0 | 1366×768 |
| LP154W01-TLF1 | LG Display | 15.4 | 1280×800 |
| LTD121EXPD | TOSHIBA | 12.1 | 1280×800 |
| LTN133AT03-001 | Samsung | 13.3 | 1280×800 |
| LTN141AT16-B03 | Samsung | 14.1 | 1280×800 |
| N150P3-L01 | IDTech | 15.0 | 1400×1050 |
| TX41D97VC1HAA | KOE | 16.1 | 1400×1050 |
