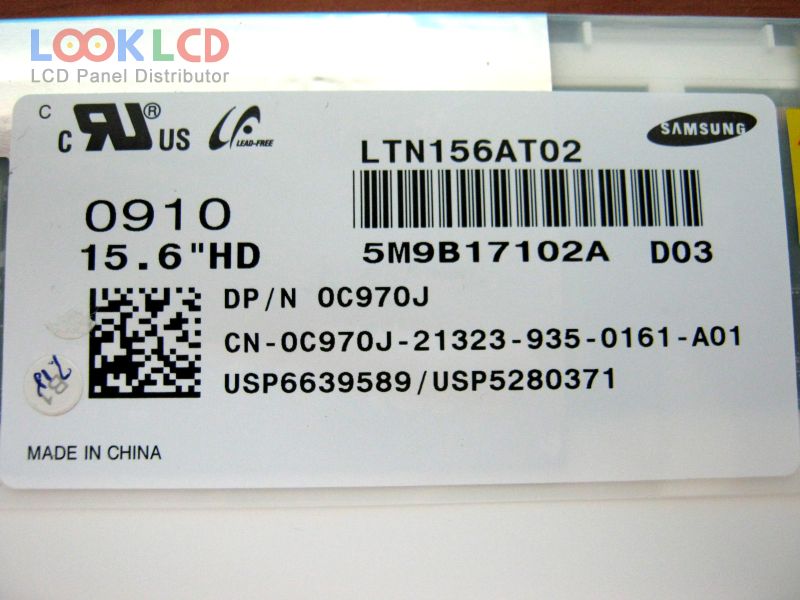

| Número da peça | LTN156AT02-D03 |
| Marca | Samsung |
| Tamanho | 15.6 |
| Aplicativo | NBPC |
| Resolução | 1366×768 |
| Composição | LCM |
| Brilho | 220 |
| CR | 600:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | SAMSUNG |
| modelo de painel | LTN156AT02-D03 16 Compatible model |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 15.6 inch |
| resolução | 1366(RGB)×768 , WXGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 344.232×193.536 mm |
| contorno | 359.3×209.5×5.5 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |
| superfície | Glare (Haze 0%), Hard coating (3H) |
| brilho | 220 cd/m² (Typ.) |
| taxa de contraste | 600:1 (Typ.) |
| exibir cores | 262K (6-bit), CIE193160% |
| tempo de resposta | 25 (Typ.)(Tr+Td) |
| ângulo de visão | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 8S6PWLEDEmbedded (LED Driver) |
| interface de sinal | LVDS (1 ch, 6-bit), 40 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | NBPC |
| LTN156AT01-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D04 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-701 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT16-401 | Samsung | 15.6 | 1366×768 |
| LTN156AT17-D01 | Samsung | 15.6 | 1366×768 |
| LTN156AT32-L01 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-W02 | Samsung | 15.6 | 1366×768 |
| LTN156AT36-W01 | Samsung | 15.6 | 1366×768 |
| B133HAN02.5 | AUO | 13.3 | 1920×1080 |
| HT14X12-101 | HYDIS | 14.1 | 1024×768 |
| LP101WH1-TLA1 | LG Display | 10.1 | 1366×768 |
| LP133WH2-TLL3 | LG Display | 13.3 | 1366×768 |
| LP140WD2-TLB1 | LG Display | 14.0 | 1600×900 |
| LP141WX1-TL04 | LG Display | 14.1 | 1280×800 |
| LP156WF4-SLBA | LG Display | 15.6 | 1920×1080 |
| LTN121AT10-301 | Samsung | 12.1 | 1280×800 |
| LTN154AT13-701 | Samsung | 15.4 | 1280×800 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
