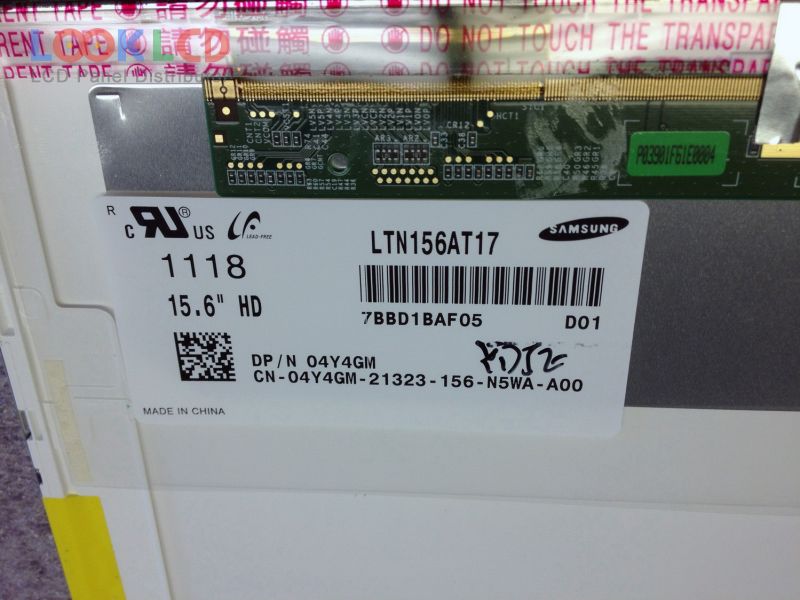

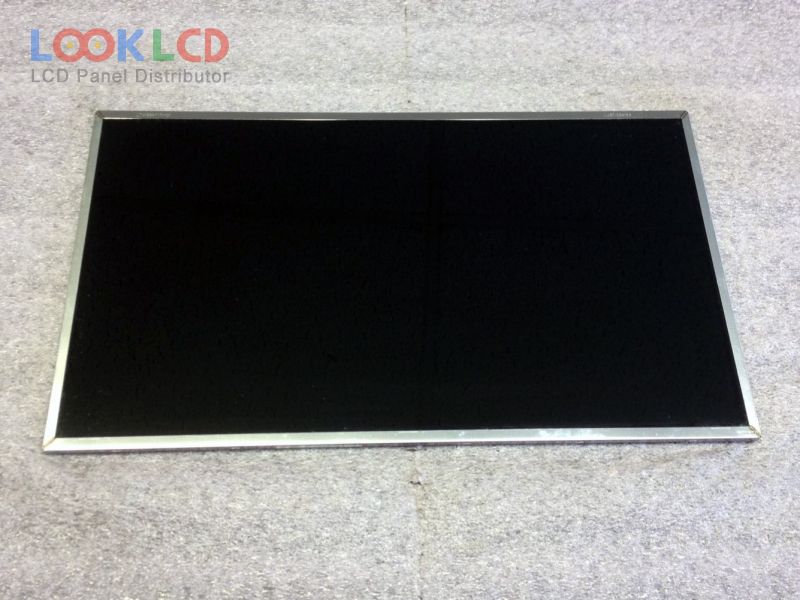

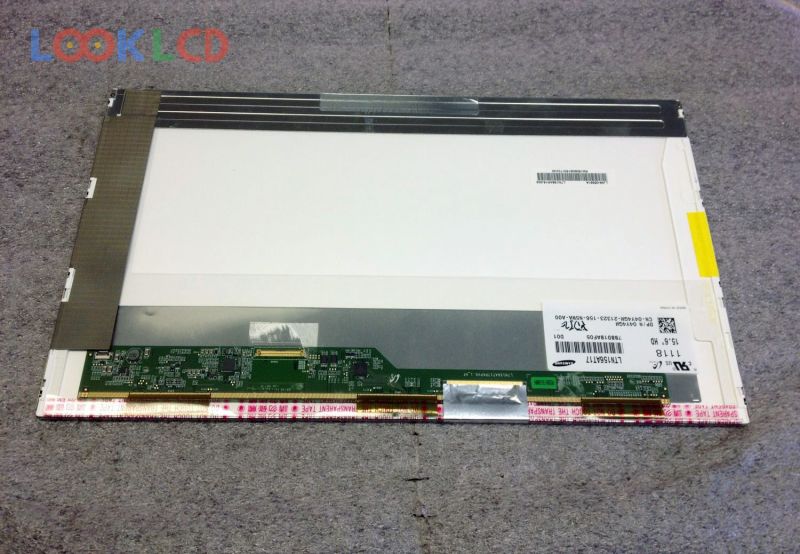

| Número da peça | LTN156AT17-D01 |
| Marca | Samsung |
| Tamanho | 15.6 |
| Aplicativo | NBPC |
| Resolução | 1366×768 |
| Composição | LCM |
| Brilho | 220 |
| CR | 500:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | SAMSUNG |
| modelo de painel | LTN156AT17-D01 16 Compatible model |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 15.6 inch |
| resolução | 1366(RGB)×768 , WXGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 344.232×193.536 mm |
| contorno | 359.3×209.5×5.5 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |
| superfície | Glare (Haze 0%), Hard coating (3H) |
| brilho | 220 cd/m² (Typ.) |
| taxa de contraste | 500:1 (Min.) |
| exibir cores | 262K (6-bit), CIE193160% |
| tempo de resposta | 16 (Typ.)(Tr+Td) |
| ângulo de visão | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 9S4PWLEDEmbedded (LED Driver) |
| interface de sinal | LVDS (1 ch, 6-bit), 40 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | NBPC |
