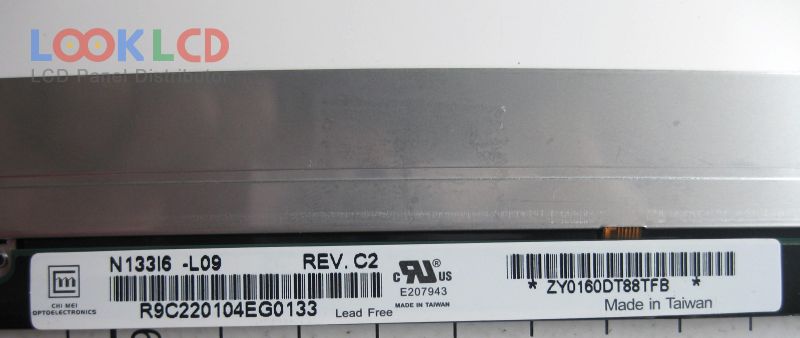

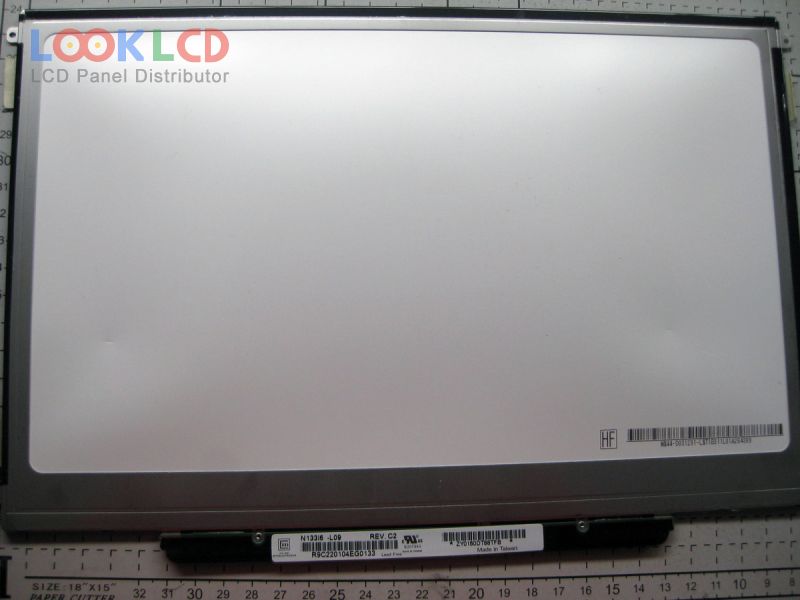

| Número da peça | N133I6-L09 |
| Marca | Innolux |
| Tamanho | 13.3 |
| Aplicativo | NBPC |
| Resolução | 1280×800 |
| Composição | LCM |
| Brilho | 290 |
| CR | 600:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | CMO |
| modelo de painel | N133I6-L09 8 Compatible model |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 13.3 inch |
| resolução | 1280(RGB)×800 , WXGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 286.08×178.8 mm |
| contorno | 307.87×203.2×3.68 mm |
| estilo de forma | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| superfície | Glare (Haze 0%), Hard coating (3H) |
| brilho | 290 cd/m² (Typ.) |
| taxa de contraste | 600:1 (Typ.) |
| exibir cores | 262K (6-bit) |
| tempo de resposta | 3/7 (Typ.)(Tr/Td) |
| ângulo de visão | 70/70/55/55 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 6 stringsWLEDWithout Driver |
| interface de sinal | LVDS (1 ch, 6-bit), 30 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | NBPC |
