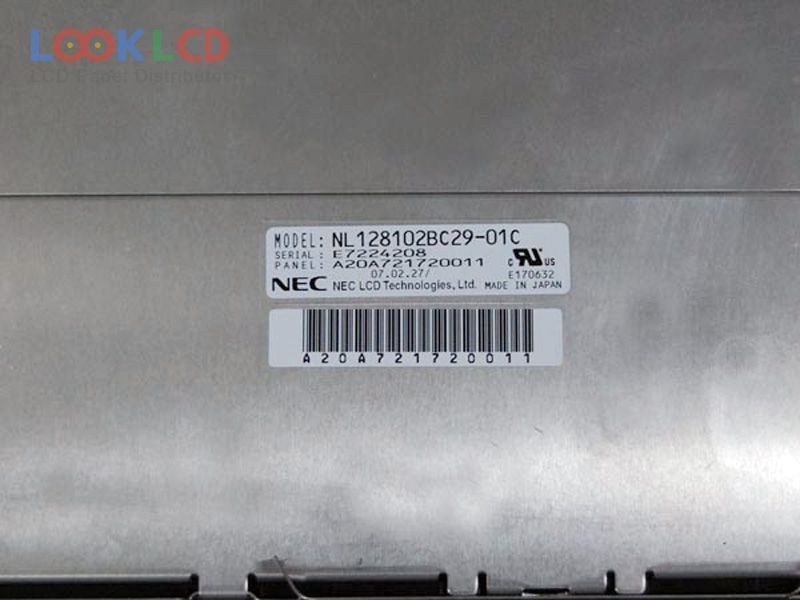

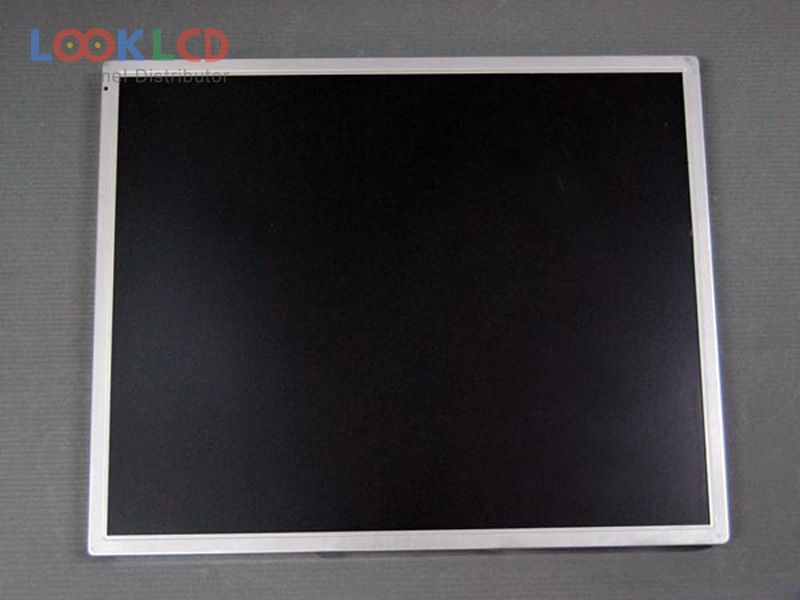

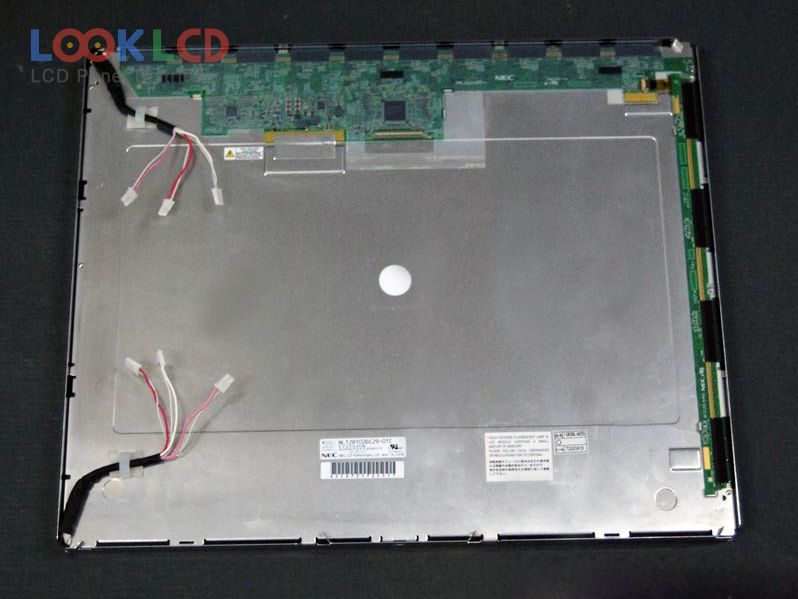

| Número da peça | NL128102BC29-01C |
| Marca | NLT |
| Tamanho | 19.0 |
| Aplicativo | DMPC |
| Resolução | 1280×1024 |
| Composição | LCM |
| Brilho | 270 |
| CR | 450:1 |
| cores | 16.7M |
| luz de fundo | CCFL |
| Interface | LVDS |
| marca do painel | NEC |
| modelo de painel | NL128102BC29-01C |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 19.0 inch |
| resolução | 1280(RGB)×1024 , SXGA |
| modo de exibição | SA-SFT, Normally Black, Transmissive |
| área ativa | 376.32×301.056 mm |
| contorno | 404.2×330×25.55 mm |
| superfície | Antiglare, Hard coating (2H) |
| brilho | 270 cd/m² (Typ.) |
| taxa de contraste | 450:1 (Typ.) |
| exibir cores | 16.7M (8-bit), CIE193172% |
| tempo de resposta | 10/10 (Typ.)(Tr/Td) |
| ângulo de visão | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 6 pcsCCFLWithout Driver |
| interface de sinal | LVDS (2 ch, 8-bit), 30 pins |
| tensão de entrada | 5.0V (Typ.) |
| aplicativo | DMPC |
