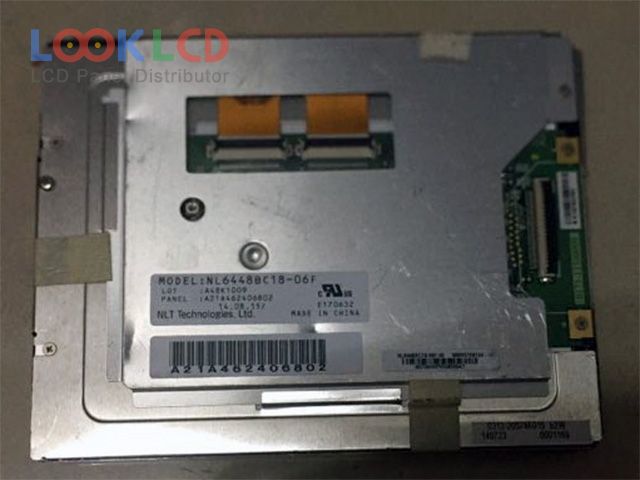

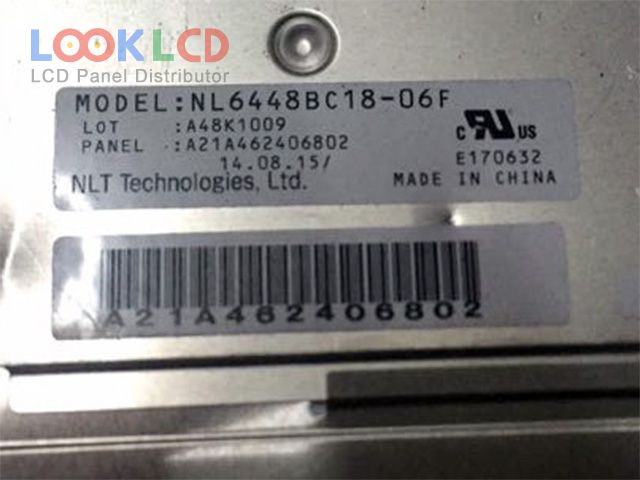

| Número da peça | NL6448BC18-06F |
| Marca | NLT |
| Tamanho | 5.7 |
| Aplicativo | IA |
| Resolução | 640×480 |
| Composição | LCM |
| Brilho | 800 |
| CR | 850:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | TTL |
| marca do painel | NEC |
| modelo de painel | NL6448BC18-06F |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 5.7 inch |
| resolução | 640(RGB)×480 , VGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 116.16×87.12 mm |
| contorno | 135×104.6×11 mm |
| superfície | Clear, Hard coating (3H) |
| brilho | 800 cd/m² (Typ.) |
| taxa de contraste | 850:1 (Typ.) |
| exibir cores | 262K (6-bit), CIE193160% |
| tempo de resposta | 3/15 (Typ.)(Tr/Td) |
| ângulo de visão | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 9S2P×2CNWLEDWithout Driver |
| interface de sinal | Parallel RGB (1 ch, 6-bit), 40 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | IA |
