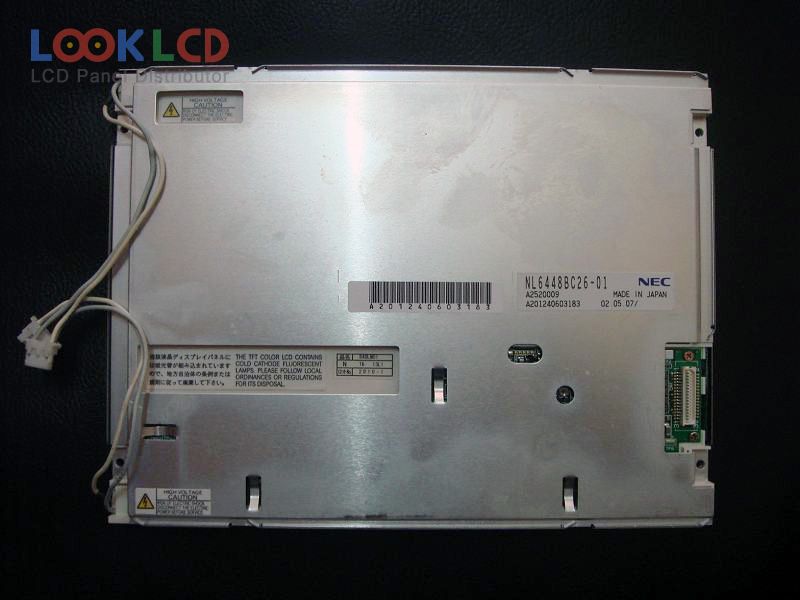

| Número da peça | NL6448BC26-01 |
| Marca | NLT |
| Tamanho | 8.4 |
| Aplicativo | IA |
| Resolução | 640×480 |
| Composição | LCM |
| Brilho | 450 |
| CR | 500:1 |
| cores | 262K |
| luz de fundo | CCFL |
| Interface | TTL |
| marca do painel | NEC |
| modelo de painel | NL6448BC26-01 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 8.4 inch |
| resolução | 640(RGB)×480 , VGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 170.88×128.16 mm |
| contorno | 200×152×12.7 mm |
| superfície | Antiglare, Hard coating (2H) |
| brilho | 450 cd/m² (Typ.) |
| taxa de contraste | 500:1 (Typ.) |
| exibir cores | 262K (6-bit), CIE193140% |
| tempo de resposta | 10/25 (Typ.)(Tr/Td) |
| ângulo de visão | 55/55/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 2 pcsCCFLWithout Driver |
| interface de sinal | CMOS (1 ch, 6-bit), 31 pins |
| tensão de entrada | 3.3/5.0V (Typ.)(VCC) |
| aplicativo | IA |
