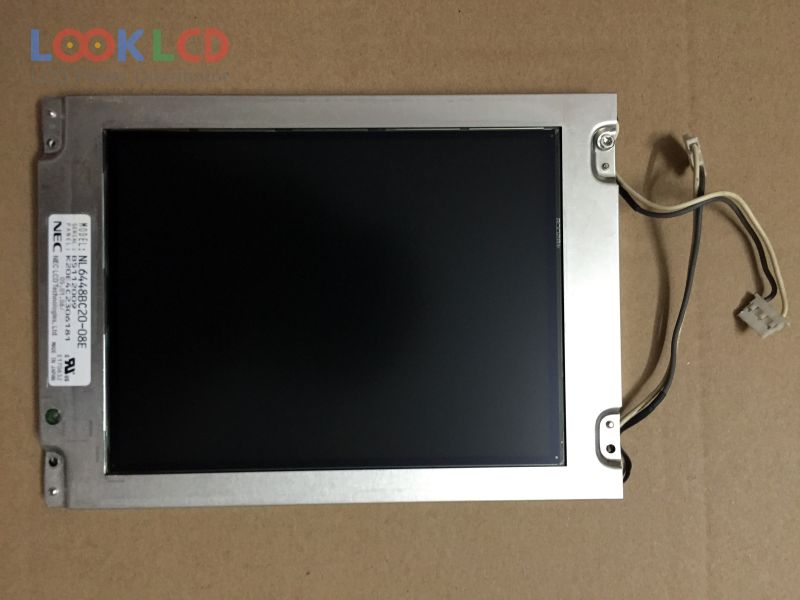

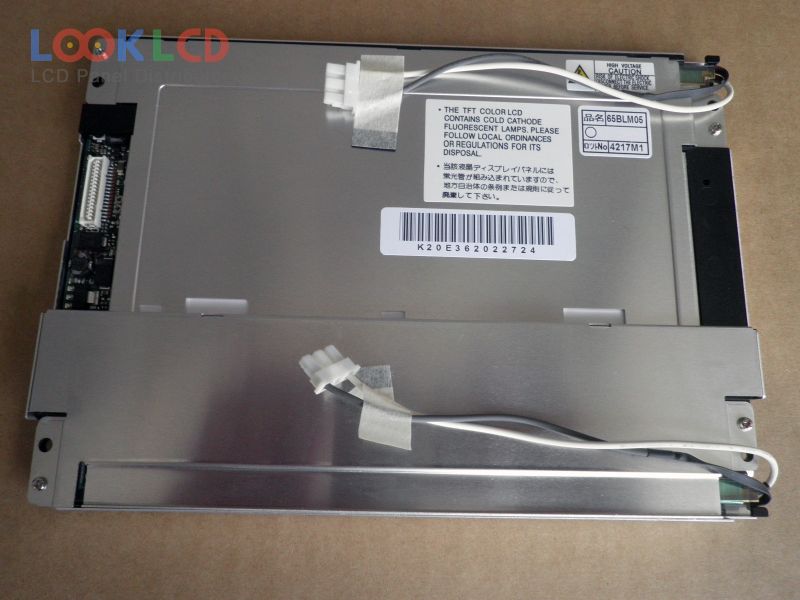

| Número da peça | NL6448BC20-08E |
| Marca | NLT |
| Tamanho | 6.5 |
| Aplicativo | IA |
| Resolução | 640×480 |
| Composição | LCM |
| Brilho | 300 |
| CR | 250:1 |
| cores | 262K |
| luz de fundo | CCFL |
| Interface | TTL |
| marca do painel | NEC |
| modelo de painel | NL6448BC20-08E |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 6.5 inch |
| resolução | 640(RGB)×480 , VGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 132.48×99.36 mm |
| contorno | 178.8×126.8 mm |
| superfície | Antiglare (Haze 16%), Hard coating (2H), Antireflection |
| brilho | 300 cd/m² (Typ.) |
| taxa de contraste | 250:1 (Typ.) |
| exibir cores | 262K (6-bit), CIE193142% |
| tempo de resposta | 13/36 (Typ.)(Tr/Td) |
| ângulo de visão | 50/50/35/45 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 2 pcsCCFLWithout Driver |
| interface de sinal | Parallel RGB, 31 pins |
| tensão de entrada | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| aplicativo | IA |
