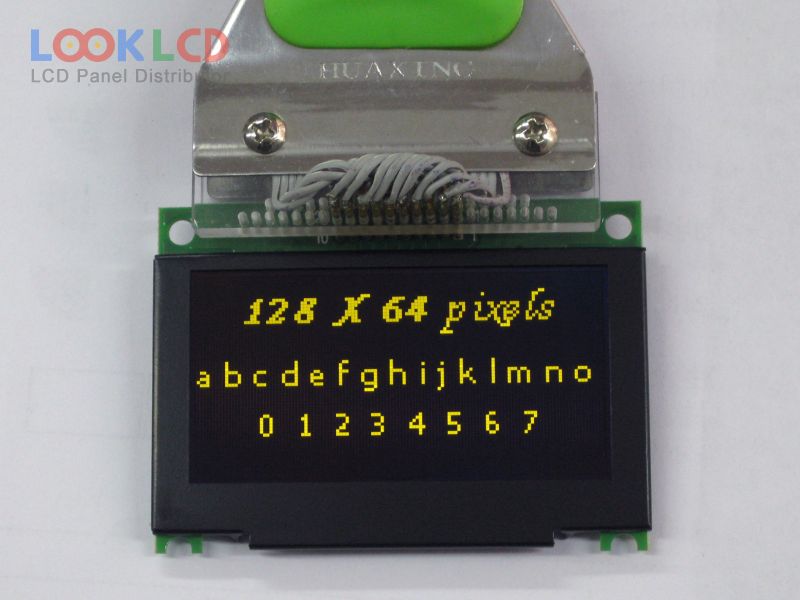

| Número da peça | HGS128645-Y-EH-LV |
| Marca | Other |
| Tamanho | 2.7 |
| Aplicativo | IA |
| Resolução | 128×64 |
| Composição | OLED |
| Brilho | 100 |
| CR | 2000:1 |
| cores | Mono(Yellow) |
| luz de fundo | self |
| Interface | CPU/SPI |
| marca do painel | TSINGTEK |
| modelo de painel | HGS128645-Y-EH-LV |
| tipo de painel | PM-OLED , OLED |
| tamanho do painel | 2.7 inch |
| resolução | 128×64 |
| área ativa | 61.41×30.69 mm |
| contorno | 75×53.5×7 mm |
| superfície | |
| brilho | 100 cd/m² (Typ.) |
| taxa de contraste | 2000 : 1 (Min.) |
| exibir cores | Mono(Yellow) |
| ângulo de visão | 80/80/80/80 (Min.)(L/R/U/D) |
| motorista ic | Built-in SSD1325 |
| interface de sinal | 8-bit 6800/8080 parallel, SPI, 20 pins |
| tensão de entrada | 3.3V (Typ.) |
| rohs: | |
| aplicativo | IA |
