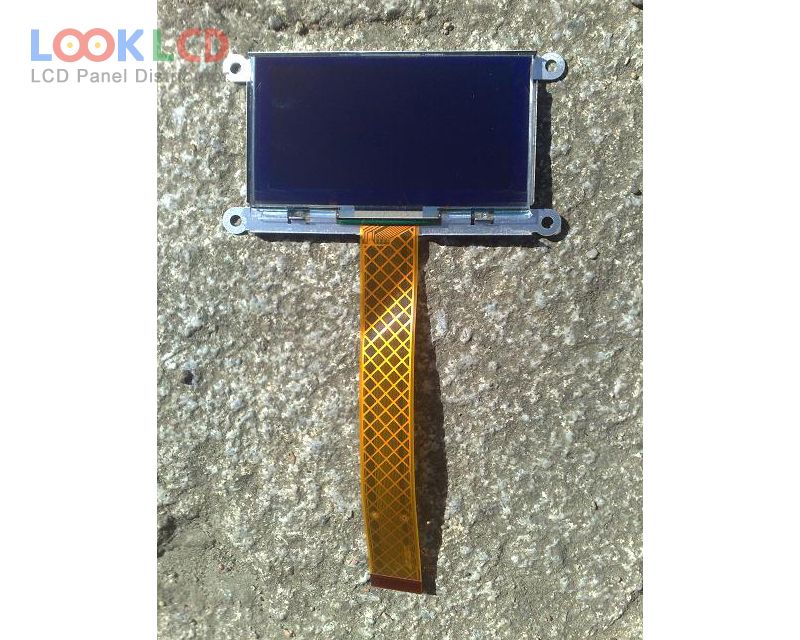

| Número da peça | UG-2864ASYDT01 |
| Marca | WiseChip |
| Tamanho | 2.7 |
| Aplicativo | IA |
| Resolução | 128×64 |
| Composição | OLED |
| Brilho | 100 |
| CR | 1000:1 |
| cores | Mono(Yellow) |
| luz de fundo | self |
| Interface | CPU/SPI |
| marca do painel | Univision |
| modelo de painel | UG-2864ASYDT01 |
| tipo de painel | PM-OLED , OLED |
| tamanho do painel | 2.7 inch |
| resolução | 128×64 |
| área ativa | 61.41×30.69 mm |
| contorno | 73×41.86×3.7 mm |
| superfície | |
| brilho | 100 cd/m² (Typ.) |
| taxa de contraste | 1000 : 1 (Min.) |
| exibir cores | Mono(Yellow) (1-bit) |
| ângulo de visão | 80/80/80/80 (Min.)(L/R/U/D) |
| motorista ic | TAB Built-in SSD1325 |
| interface de sinal | 8-bit 6800/8080 parallel, 4-wire SPI, 30 pins |
| tensão de entrada | 2.8/15V (Typ.)(VDD/VCC) |
| rohs: | |
| aplicativo | IA |
