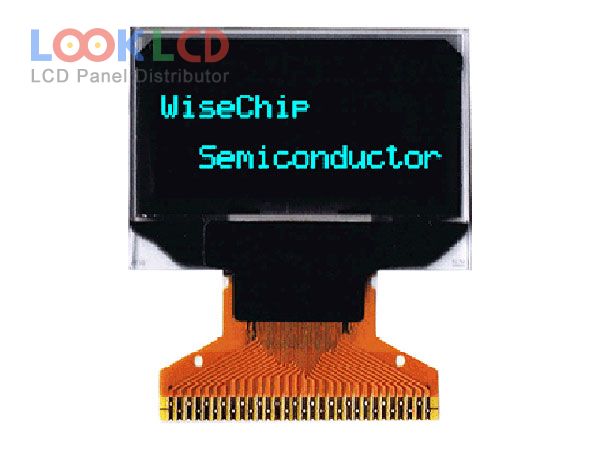

| Número da peça | UG-2864HLBEG01 |
| Marca | WiseChip |
| Tamanho | 0.96 |
| Aplicativo | IA |
| Resolução | 128×64 |
| Composição | OLED |
| Brilho | 100 |
| CR | 2000:1 |
| cores | Mono(Blue) |
| luz de fundo | self |
| Interface | CPU/SPI/I²C |
| marca do painel | Univision |
| modelo de painel | UG-2864HLBEG01 |
| tipo de painel | PM-OLED , OLED |
| tamanho do painel | 0.96 inch |
| resolução | 128×64 |
| área ativa | 21.744×10.864 mm |
| contorno | 26.7×19.26×1.55 mm |
| superfície | |
| brilho | 100 cd/m² (Typ.) |
| taxa de contraste | 2000 : 1 (Typ.) |
| exibir cores | Mono(Blue) (1-bit) |
| ângulo de visão | 80/80/80/80 (Min.)(L/R/U/D) |
| motorista ic | Built-in SSD1306 |
| interface de sinal | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| tensão de entrada | 2.8/9V (Typ.)(VDD/VCC) |
| rohs: | |
| aplicativo | IA |
| UG-2864ALBPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASGIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASGPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASYDT01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASYIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864HLBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HSWEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864KLBLG01 | WiseChip | 1.3 | 128×64 |
| UG-2864KSWMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSYMG01 | WiseChip | 1.54 | 128×64 |
| AA104VC06 | Mitsubishi | 10.4 | 640×480 |
| AM-800480RCTMQW-00H | AMPIRE | 7.0 | 800×480 |
| EL240.128.45 CC | Lumineq | 4.8 | 240×128 |
| G121AGE-L03 | Innolux | 12.1 | 800×600 |
| HSD190MEN4-A02 | HannStar | 19.0 | 1280×1024 |
| KCS057QV1AJ-G23 | Kyocera | 5.7 | 320×240 |
| LM64P723 | SHARP | 9.4 | 640×480 |
| LQ025Q3DW01 | SHARP | 2.5 | 320×240 |
| LQ121S1LG84 | SHARP | 12.1 | 800×600 |
| UG-2896GDEAF11 | WiseChip | 1.3 | 128×96 |
