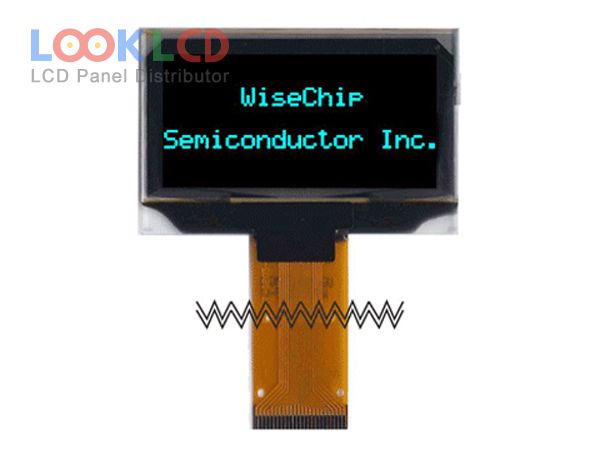

| Número da peça | UG-2864KLBMG01 |
| Marca | WiseChip |
| Tamanho | 1.54 |
| Aplicativo | IA |
| Resolução | 128×64 |
| Composição | OLED |
| Brilho | 120 |
| CR | 10000:1 |
| cores | Mono(Blue) |
| luz de fundo | self |
| Interface | CPU/SPI/I²C |
| marca do painel | WiseChip |
| modelo de painel | UG-2864KLBMG01 |
| tipo de painel | PM-OLED , OLED |
| tamanho do painel | 1.54 inch |
| resolução | 128×64 |
| área ativa | 35.052×17.516 mm |
| contorno | 42.04×27.22 mm |
| superfície | |
| brilho | 120 cd/m² (Typ.) |
| taxa de contraste | 10000 : 1 (Typ.) |
| exibir cores | Mono(Blue) |
| ângulo de visão | |
| motorista ic | Built-in SSD1309 |
| interface de sinal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| aplicativo | IA |
